1. Tractor Specifications

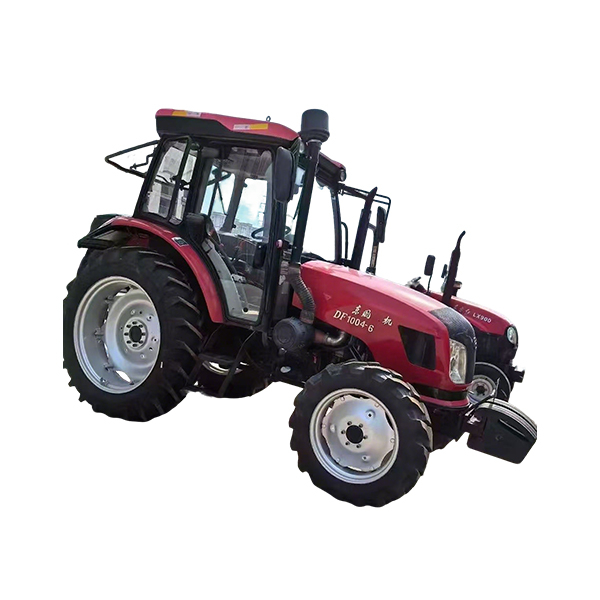

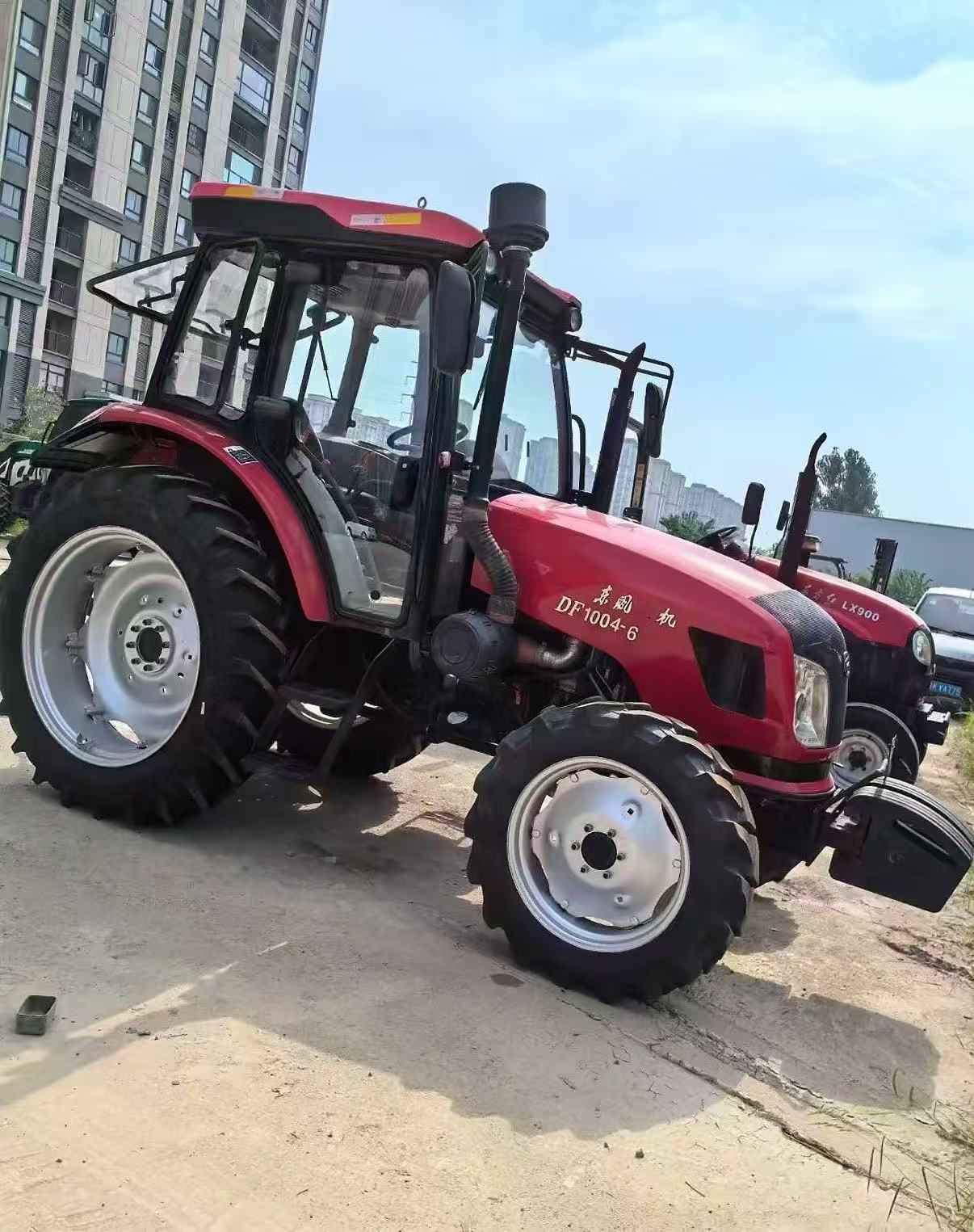

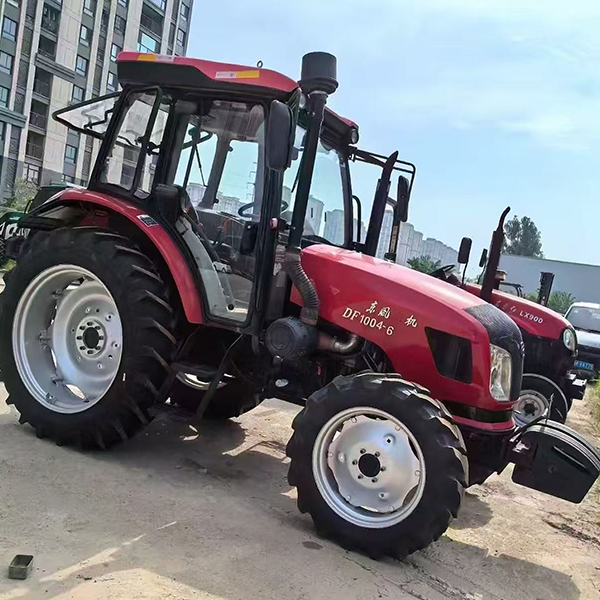

Model: DF1004-6 (China III)
Drive Type: 4×4 Four-wheel drive
Dimensions: 4530 × 2030 × 2730 mm
2. Engine (China III)
Type: Inline 4-cylinder, 4-stroke, water-cooled, turbocharged with intercooler, high-pressure common rail, direct injection
Common Brands/Models: Yuchai YC4A110-T301, Changchai 4G33T, Yunnei Power
Rated Power: 73.5 kW (100 HP)
Rated Speed: 2300 r/min
Intake Method: Turbocharged with intercooler
3. Transmission System
Clutch: Dry, independent control dual-acting clutch
Transmission: 12F + 12R shuttle shift
Main shift: 4-speed
Auxiliary shift: 3-speed (High / Medium / Low)
Differential Lock: Standard, mechanical
4. Hydraulics & Hitch
Hitch System: Rear Category II 3-point linkage
Lift Control: Force, position, and mixed force-position control, forced lift & forced drop
Hydraulic Remote Valves: Dual remote outputs (imported quick couplers)
5. Power Take-Off (PTO)
Type: Fully independent
Standard Speed: 540 / 730 r/min
Optional Speeds: 540/860 or 540/1000 r/min
Spline: 8-tooth, outer diameter 38 mm
6. Running Gear & Steering
Tire Specifications (Standard): Front: 11.2-24, Rear: 16.9-30
Steering System: Full hydraulic steering, integrated water/dry land front axle
Min. Turning Radius: ≤ 5.0 m
Brake: Wet disc brake
Parking Brake: Independent caliper-type hand brake
Fuel Tank Capacity: 90 L
