1. Tractor Specifications

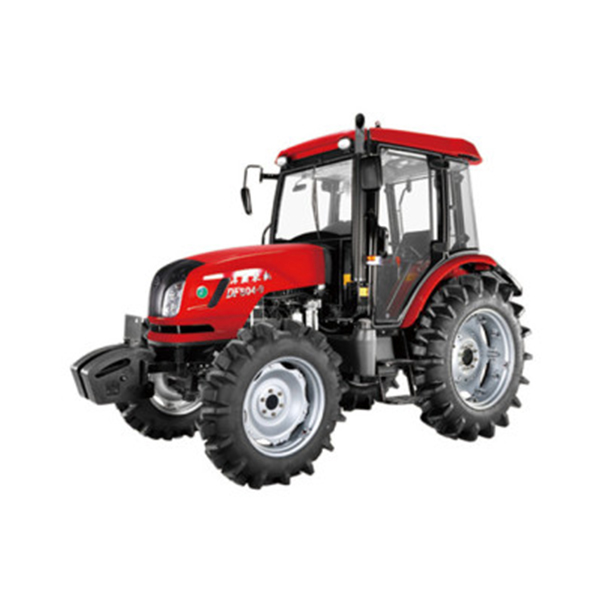

Model: DF804-9 (China III)
Drive Type: 4×4 Four-wheel drive
Dimensions: 4165 × 1845 × 2635 mm
Operating Mass:
Cab version: Approx. 3070 kg
Safety frame version: Approx. 2850 kg
2. Engine
Type: Inline, 4-cylinder, 4-stroke, water-cooled, turbocharged with intercooler
Common Brands/Models: Changchai 4G33V16-80G31C, Yuchai YC4D95-T301
Rated Power: 58.8 kW (80 HP)
Rated Speed: 2300 r/min
Intake Method: Turbocharged with intercooler
Starting Method: Electric start
3. Transmission System
Clutch: Dry, independent control dual-acting clutch
Transmission: 12F + 12R shuttle shift (standard)
Main shift: 4-speed
Auxiliary shift: 3-speed (High / Medium / Low)
4. Hydraulics & Hitch
Hitch System: Rear Category II 3-point linkage
Lift Control: Mixed force and position control, forced lift & forced drop
Hydraulic Remote Valves: Dual remote outputs
5. Power Take-Off (PTO)
Type: Fully independent
Standard Speed: 540 / 730 r/min
Optional Speeds: 540/1000 r/min or 540/860 r/min
Spline: 8-tooth, outer diameter 38 mm
6. Running Gear & Steering
Tire Specifications (Standard): Front: 9.5-24, Rear: 14.9-30
Steering System: Full hydraulic steering, with differential lock
Brake: Wet disc brake
Fuel Tank Capacity: 82 L
