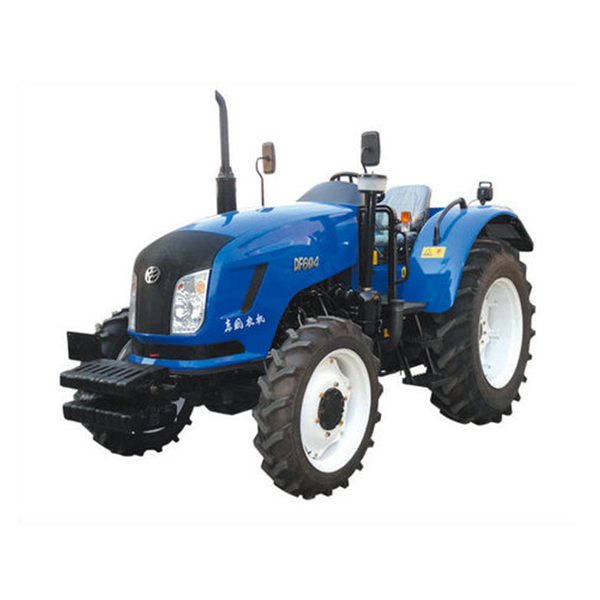

1. Tractor Specifications
Model: DF604-3
Drive Type: 4×4 (Four-wheel drive)
Dimensions (L × W × H): 3815 × 1615 × 2250 mm
Wheelbase: 1980 mm
Tire Specifications (Standard): Front: 9.5-20 / Rear: 11-32
2. Engine Specifications
Model: Changchai 4G33TC-GU (China III)
Type: Inline, 4-cylinder, 4-stroke, water-cooled, direct injection diesel engine
Rated Power: 44.1 kW (60 HP)
Rated Speed: 2400 rpm
Starting Method: Electric start
Fuel Tank Capacity: 60 L
3. Transmission System
Transmission: (1+1)×4×(3+1) Combination type, shuttle shift
Gears: 12 Forward / 12 Reverse (12F+12R)
Clutch: Dry, dual-acting clutch
Differential Lock: Standard
Final Drive: Planetary gear
4. Power Take-Off (PTO)
Type: Independent
Speed: 540 / 730 rpm (optional 540 / 1000 rpm)
Spline: 8-tooth, outer diameter φ38 mm
Output Power: Approx. 39.6 kW
5. Hydraulics & Hitch
Hydraulic Pump: Gear pump, flow 33.6 L/min
Hitch System: Rear 3-point linkage (Category II)
Hydraulic Remote Valves: 1-2 spool valves optional
Control Method: Mixed force and position control
6. Steering & Brakes
Steering: Full hydraulic steering
Brakes: Wet disc brake
Parking Brake: Hand brake
7. Cab & Features
Standard: Safety frame (ROPS)
Options: Safety cab, canopy, air brake device
Seat: Spring damped, adjustable forward/backward
