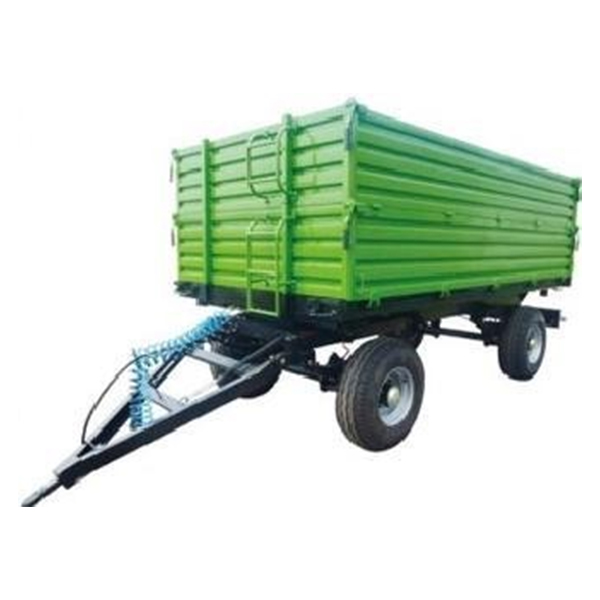

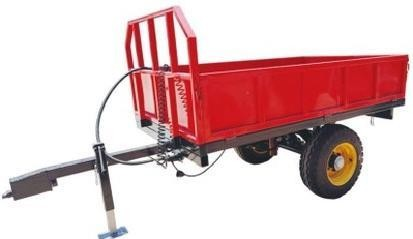

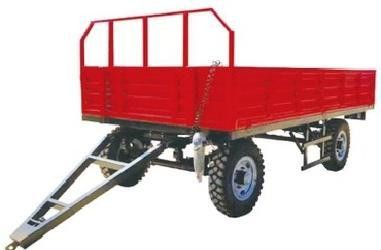

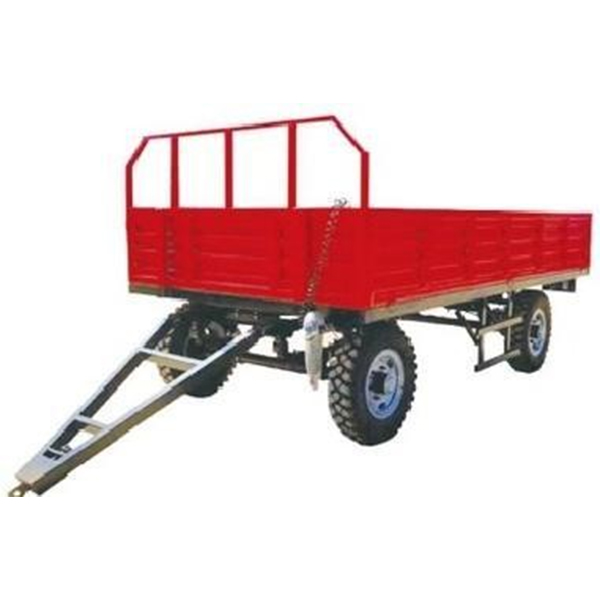

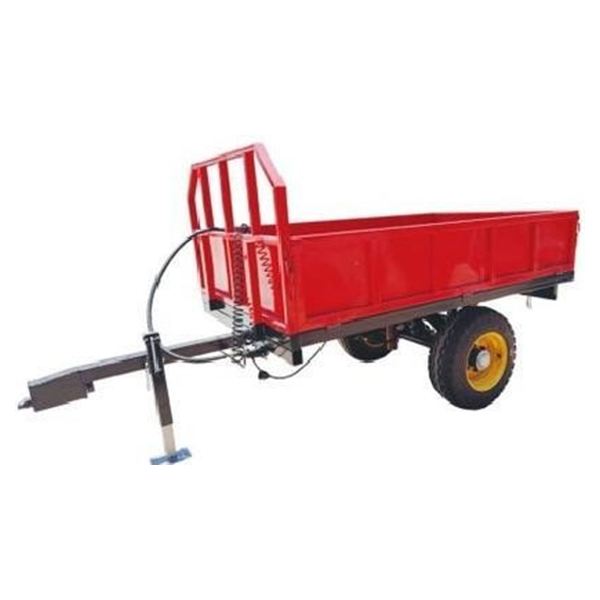

The single axle farm trailer is used for 12-120hp 4-wheels tractor,Applicable for transporting various bulk cargoes in plains,mountains,wetlands,knap,rural area and highway,with the feature of solid structure;beautiful,safe,reliable,durable. It is included in two types:dumping trailer and not dumping trailer.
Model | LxW×XH Box Size(mm) | Load(kg) | Tyre Model/Qty | Tipping | Weight(kg) | TractorPower(hp) |
7C-1.5 | 2000X1000X400 | 1500 | 6.50-16/2 | No Tipping | 300 | 12-25 |
7CX-1.5 | 2000X1000×400 | 1500 | 6.50-16/2 | Rear Tipping | 350 | 12-25 |
7C-2 | 2400X1200X400 | 2000 | 6.50-16/2 | No Tipping | 360 | 12-25 |
7CX-2 | 2400X1200X400 | 2000 | 6.50-16/2 | Rear Tipping | 420 | 12-25 |
7CX-2E | 2500X1500×450 | 2000 | 10.0/75-15.3 | Rear Tipping | 600 | 12-25 |
7C-2.5 | 2500X1500×450 | 2500 | 7.50-16/2 | No Tipping | 460 | 18-30 |
7CX-2.5 | 2500X1500X450 | 2500 | 7.50-16/2 | Rear Tipping | 580 | 18-30 |
7C-3 | 3000X1600×450 | 3000 | 7.50-16/2 | No Tipping | 500 | 25-40 |
7CX-3 | 3000X1600×450 | 3000 | 7.50-16/2 | Rear Tipping | 650 | 25-40 |
7C-3 | 3400X1700×450 | 3000 | 7.50-16/2 | No Tipping | 600 | 25-40 |
7CX-3 | 3400X1700X450 | 3000 | 7.50-16/2 | Rear Tipping | 750 | 25-40 |
7C-4 | 3800X1700×450 | 4000 | 7.50-16/4 | No Tipping | 1150 | 35-40 |
7CX-4 | 3800X1700×450 | 4000 | 7.50-16/4 | Side Tipping | 1450 | 35-40 |
7C-5 | 4000×2100X550 | 5000 | 8.25-16/4 | No Tipping | 1260 | 40-60 |
7CX-5 | 4000×2100X550 | 5000 | 8.25-16/4 | Side Tipping | 1610 | 40-60 |
7CX-5E | 3700X1900X(460+460) | 5000 | 400/60-15.5/2 | Rear Tipping | 1400 | 40-60 |
7C-6 | 4500X2100×550 | 6000 | 8.25-16/4 | Non-Self-Unloading | 1400 | 50-90 |
7CX-6 | 4500×2100X550 | 6000 | 8.25-16/4 | Side Tipping | 1900 | 50-90 |
7C-8 | 5500X2100×550 | 8000 | 9.00-16/4 | Non-Self-Unloading | 2050 | 60-100 |
7CX-8 | 5500×2100X550 | 8000 | 9.00-16/4 | Side Tipping | 2600 | 60-100 |
7CX-8E | 4100×2100X(550+550) | 8000 | 11.5/80--15.3/4 | Three-Way Tipping | 3500 | 60-100 |
7C-10 | 6000×2100×550 | 10000 | 8.25-16/8 | Non-Self-Unloading | 2700 | 80-120 |
