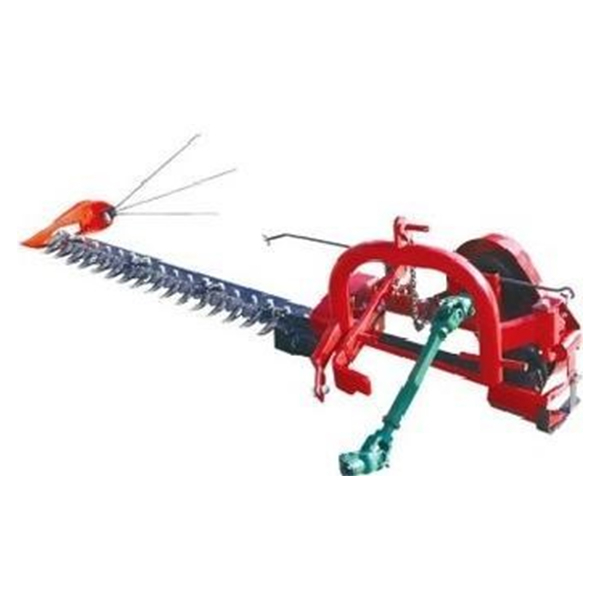

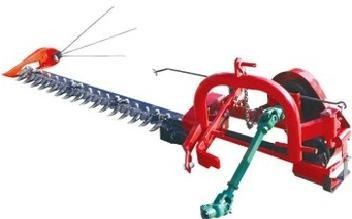

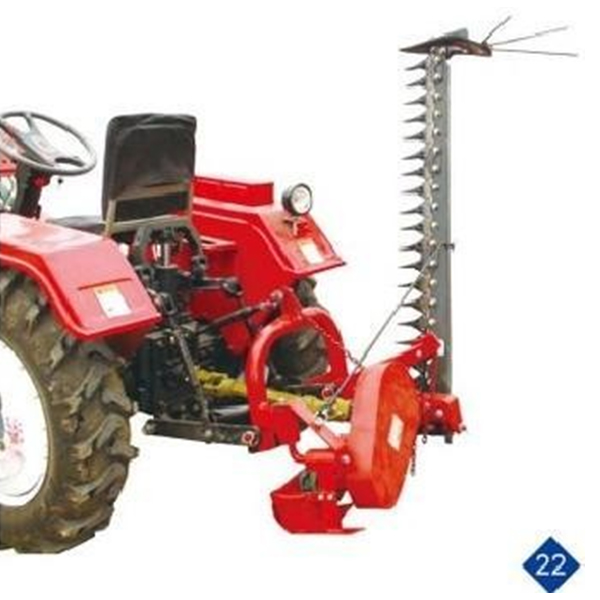

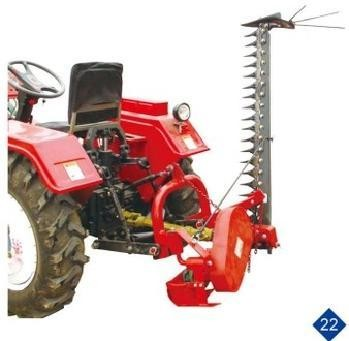

Model 9G series of sickle bar mower takes advantage of the offset crank link mechanism to drive the cutterblademow grass,and it is adequate for cutting the natural and planted grasses in ranch,mountain and hilly area. The structure of this machine is compact and the operation is easy and reliable and the residues are lower after cutting.
Model | 9G-1.4 | 9G-1.6 | 9G-1.8 | 9G-2.1 |
Cutting Width(mm) | 1400 | 1600 | 1800 | 2100 |
Cutting Height(mm) | 50-80 | |||
PTO speed(r/min) | 540 | |||
Weight (kg) | 120 | 124 | 128 | 135 |
Tractor power (hp) | 12-20 | 15-20 | 20-30 | 20-30 |
Mounted cat | Cat I | |||
