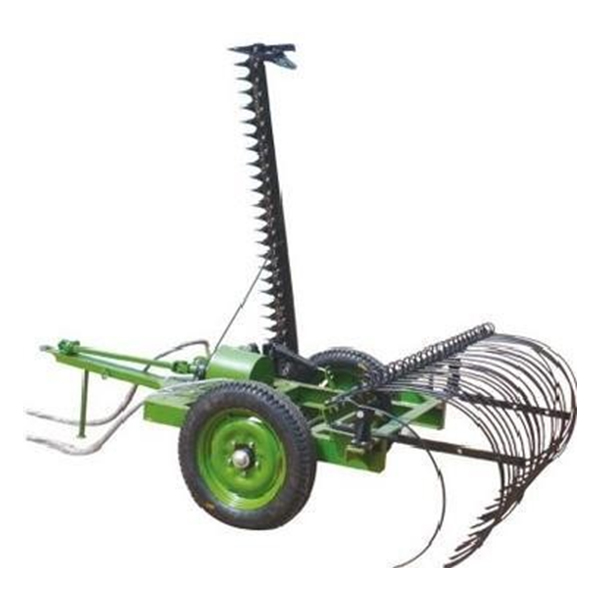

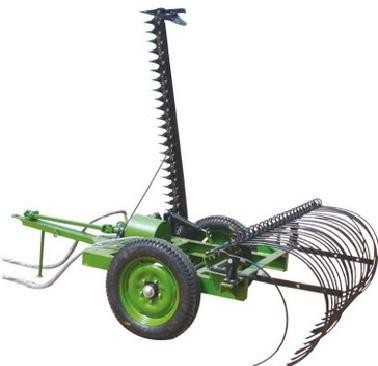

Model 9GBLseries cutting and rakingmachine take advantage of the offset crank link mechanism to drive the cutter blade mow grass simultaneously and the raking mechanism rake the grass together.And the machine is adequate for cutting the natural and planted grasses in ranch,mountain and hilly area.
Model | 9GBL-1.4 | 9GBL-1.6 | 9GBL-1.8 | 9GBL-2.1 |
Cutting Width(mm) | 1400 | 1600 | 1800 | 2100 |
Cutting Height(mm) | 50-80 | |||
PTO speed (r/min) | 540 | |||
Weight(kg) | 280 | 300 | 320 | 340 |
Tractor power(hp) | 12-20 | 15-20 | 20-30 | 20-30 |
Mounted cat | Trailed | |||
