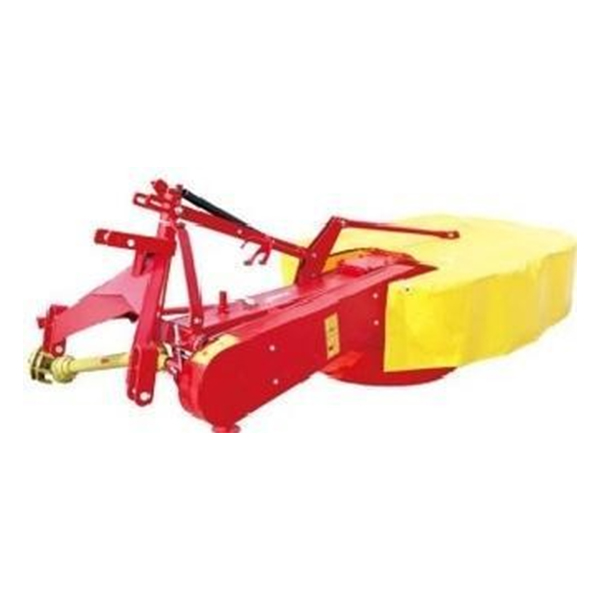

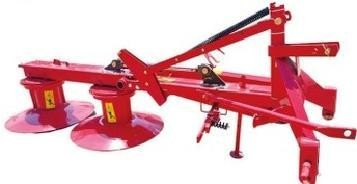

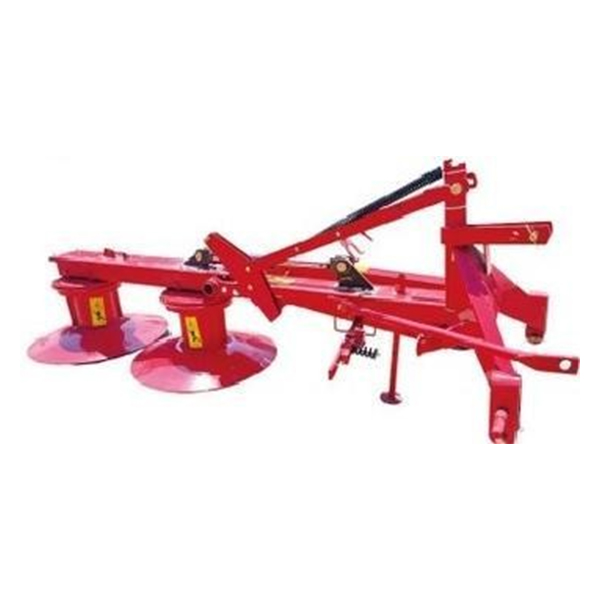

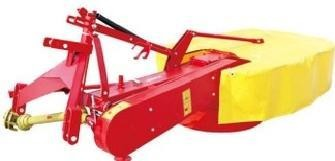

This rotary drum mower is mainly used for cutting the natural and planted grasses in ranch,mountain and hilly area. The structure of this machine is compact and the operation is easy and reliable and the residues are lower after cutting.
Model | DM-125 | DM-135 | DM-165 | DM-185 |
Cutting Width(mm) | 1250 | 1350 | 1650 | 1850 |
Cutting Height Adjust. (mm) | 30 | 30 | 30 | 30 |
Transportation Width(mm) | 850 | 950 | 140 | 160 |
Transportation Length(mm) | 2550 | 2650 | 2850 | 3050 |
Height | 1100 | 1100 | 1100 | 1100 |
Weight | 330 | 350 | 400 | 440 |
Drums(pcs) | 2 | 2 | 2 | 2 |
Blades(pcs) | 6 | 6 | 6 | 6 |
P.T.O Drive Shaft | With | With | With | With |
Mounted Cat | Cat I | Cat I | Cat I/I/Ⅲ | Cat I/I/Ⅲ |
Tractor Power(hp) | ≥20 | ≥30 | ≥45 | ≥60 |
Item Optional | Hydraulic | |||
