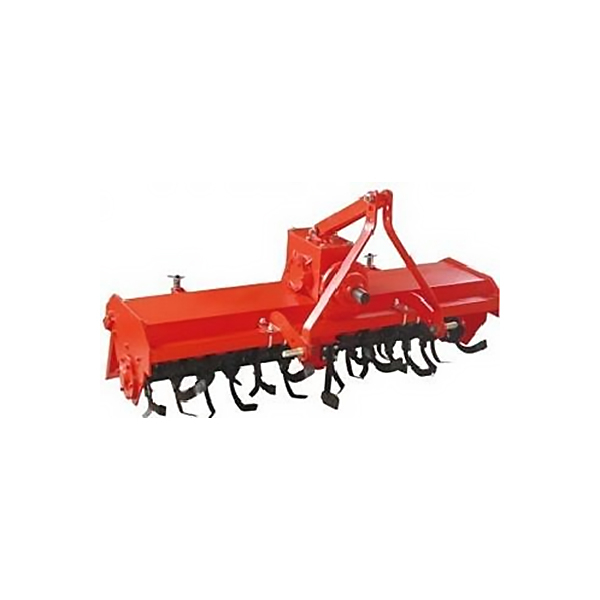

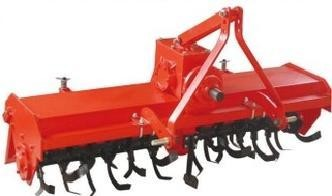

1GQN series of rotary tiller is adopted middle gear transmission system, mounted with the tractor though the 3 point suspension.Tractor's wheel tracks are completely covered after tillage as the working width is much wider.The quality is reliable and the performance is well.This cultivator can be used on dry and paddy field.It can reduce the time,laboring,and cost,etc.
Model | 1GQN- | |||||||||
100 | 125 | 140 | 150 | 160 | 180 | 200 | 220 | 250 | 300 | |
Working width(mm) | 1000 | 1250 | 1400 | 1500 | 1600 | 1800 | 2000 | 2200 | 2500 | 3000 |
Working depth(mm) | 120-180 | |||||||||
PTO Rotation speed | 540-720 | |||||||||
PTO shaft spline | 6 spline | |||||||||
No.of blades | 18 | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 58 | 70 |
Type of blade | IT225 | IT245 | ||||||||
Total weight(kg) | 190 | 200 | 210 | 220 | 240 | 370 | 400 | 420 | 470 | 500 |
Tractor power(hp) | 12 | 20 | 25 | 30 | 40 | 50 | 60 | 70 | 80 | 90 |
Linkage | Mounted Cat I | Mounted Cat Ⅱ | ||||||||
Items Optional | PTO transmission shaft in 8 spline | |||||||||
