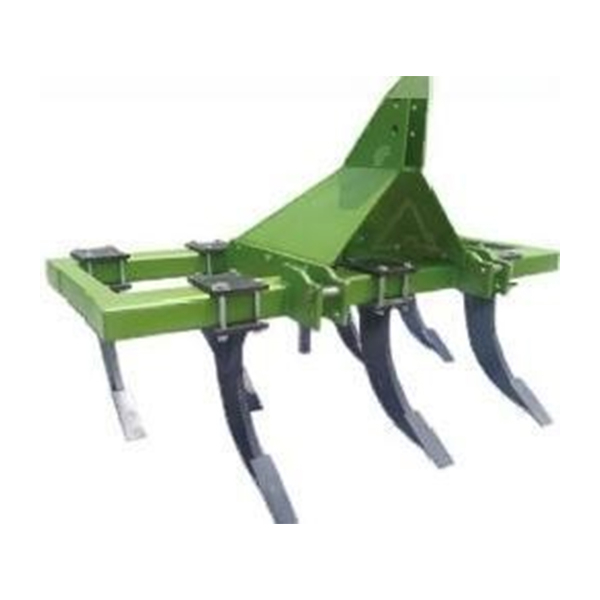

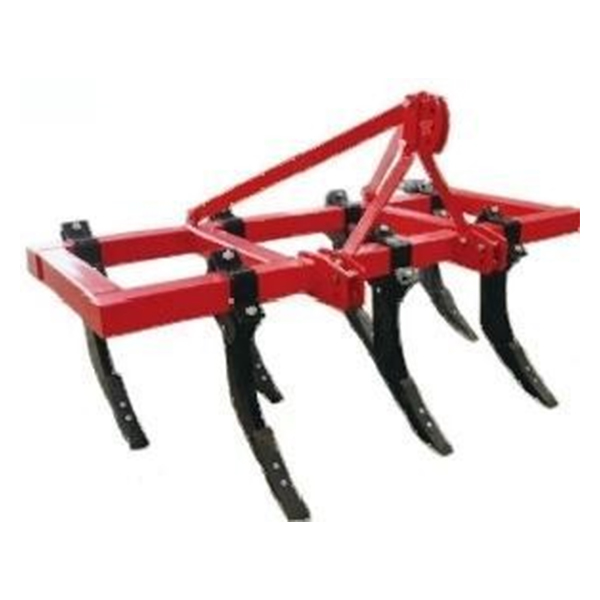

3S series Chisel plow is designed according to the requirements of foreign customers.It is suitable for deep cultivation of potato,soybean,cotton and other crops.The chisel plow can break the hard layer of the soil,level the soil,maintain the water content of the ground,remove residues and so on.Adjustable depth,wide application,easy to operate.It can be adjustable in depth,applied in wide range and easy to operate.
Model | 3S-1.0 | 3S-1.4 | 3S-1.8 | 3S-2.1 | 3S-2.6 |
working width(mm) | 1000 | 1400 | 1800 | 2100 | 2600 |
working Depth(mm) | 100-350 | ||||
Tine Qty | 5 | 7 | 9 | 11 | 13 |
Total Weight(kg) | 240 | 280 | 320 | 370 | 450 |
Tractor power(hp) | 25 | 30-40 | 50-60 | 70-80 | 80-100 |
Linkage | Mounted CATI | Mounted CATⅡ | |||
