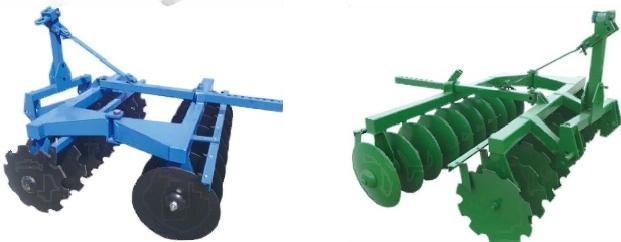

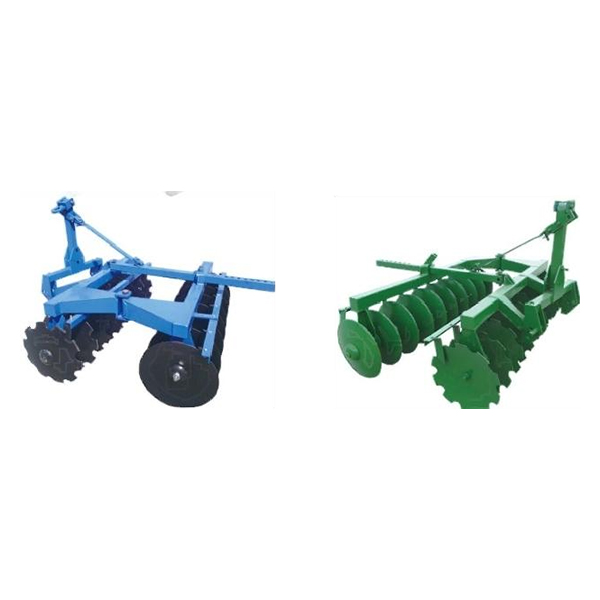

Compact Model Disc Harrow is used in open field working for the superficial ploughing,for the shattering of clods, preparation of soil for sowing,burial of organic substances and remains.It can be used in both forms i.e.mounted as well as trailed.
Model | 1BJX-1.4A | 1BJX-1.6A | 1BJX-1.8A | 1BJX-2.0A | 1BJX-2.3A | 1BJX-2.5A | 1BJX-2.7A |
Working Width(mm) | 1400 | 1600 | 1800 | 2000 | 2300 | 2500 | 2700 |
Working Depth (mm) | 140 | ||||||
Disc Dia.(mm) | 560/610 | ||||||
Disc Qty | 12 | 14 | 16 | 18 | 20 | 22 | 24 |
Weight(kg) | 440 | 490 | 550 | 590 | 620 | 650 | 720 |
Tractor power(hp) | 30 | 40 | 50-60 | 60-70 | 70-80 | 80-100 | 90-110 |
Linkage | Mounted Cat Ⅱ | ||||||
