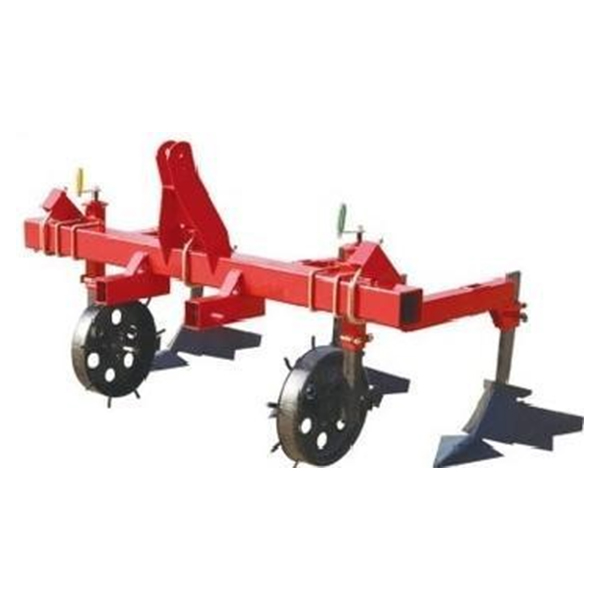

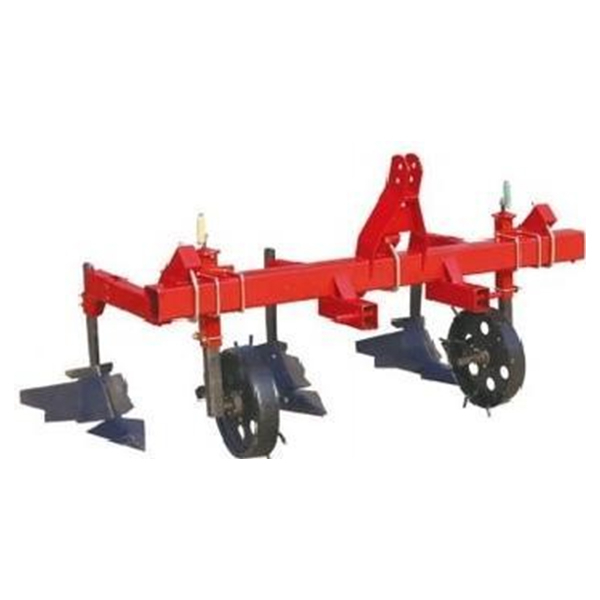

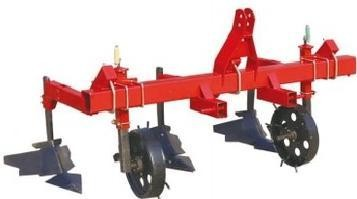

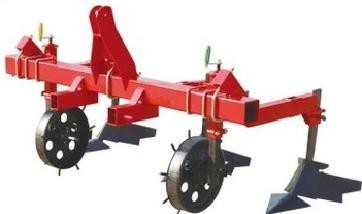

3Z series of cultivator can be used for inter-cultivation on the field of corn,soybean,cotton,potato and so on.
It can finish the field work at one time,such as inter-cultivation subsoil ,ditching,ridging and so on.It has features of convenient adjustment of row spacing,flexible depth control,easy adjustment of ridging width,wide range of use and so on.
Model | 3Z-2 | 3Z-3 | 3Z-4 | 3Z-5 |
working width(mm) | 1100 | 1900 | 2900 | 3700 |
working Depth(mm) | 100-200 | |||
Tine Qty | 2 | 3 | 4 | 5 |
Ridging Rows | 1 | 2 | 3 | 4 |
Total Weight (kg) | 90 | 120 | 150 | 190 |
Tractor power (hp) | 18 | 20-30 | 40-50 | 70-80 |
Linkage | Mounted CATI | Mounted CATI | ||
