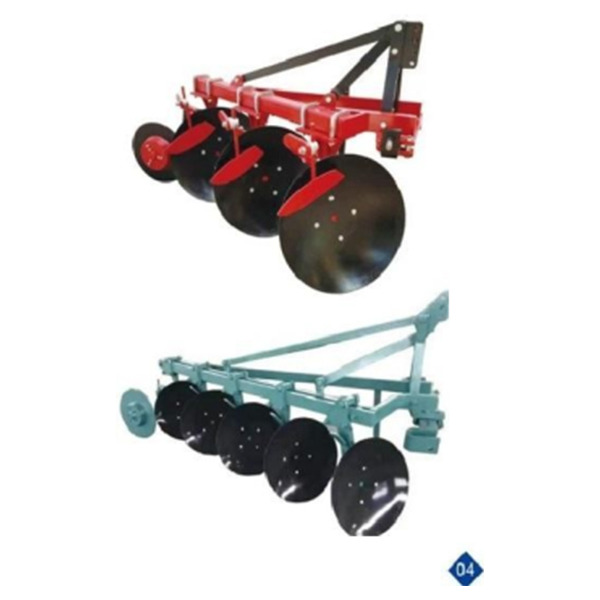

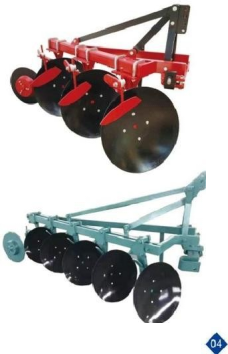

This series disc plough is specially designed and manufactured borrowing the features of disc plough abroad.It is fully mounted with 4-wheel tractor.The discs of plough are revolving to furrow the land during operation. Themounted disc plow is especiallysuitable for cultivation on land which have weeds,stems and frictional soil with small brick etc
Model | Unit | 1LY-225F | 1LY-325F | 1LY-425F | 1LY-525F |
Disc qty | 2 | 3 | 4 | 5 | |
Disc dia. | mm | 660 | 660 | 660 | 660 |
Working depth | mm | 250-300 | |||
Working width | mm | 500 | 750 | 1000 | 1250 |
Total weight | Kg | 300 | 420 | 520 | 650 |
Tractor power(hp) | hp | 25~30 | 35~50 | 60~80 | 80~90 |
Linkage | Mounted CATⅡ | ||||
