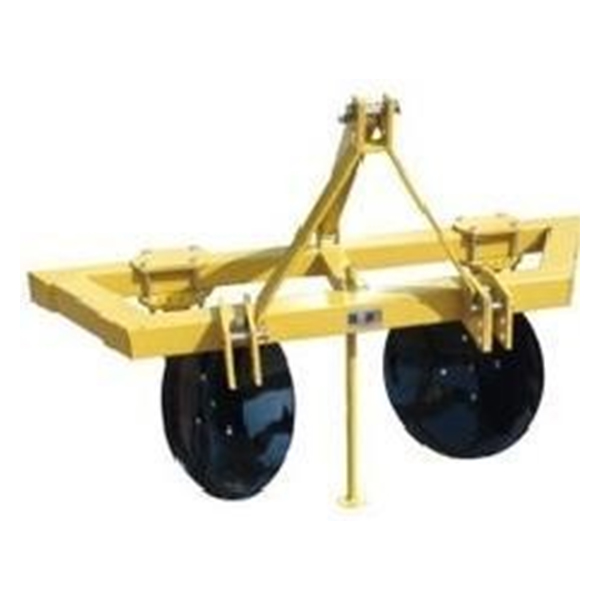

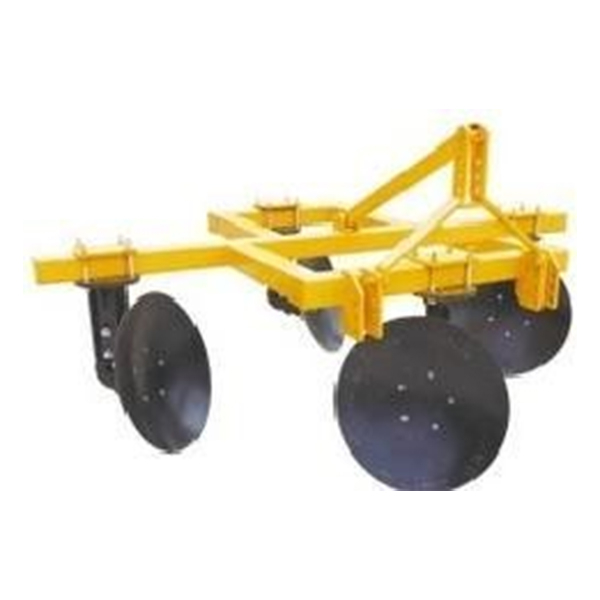

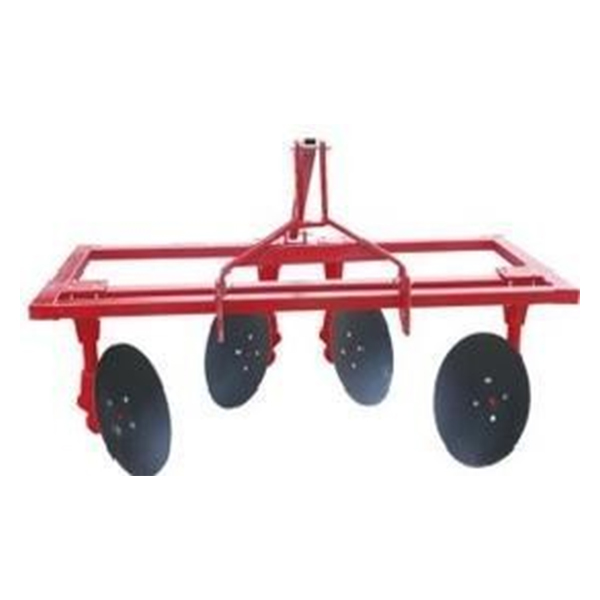

3Z series of disc ridger is suitable forridging after the tillage in the farm field.it consists of heavy duty tubular boxframe,3 point hitch system and discs.Thedisc blades aremadeafterthe heat treatmentin the material of 65Mn spring steel that has better hardness.The machine is reasonable for construction,convenientlyto transport,easy to adjust,and conveniently to use and maintain.
Model | 3Z-120 | 3Z-180 | 3Z-140 | 3Z-260 |
Disc Qty | 2 | 4 | 2 | 4 |
Disc Dia. (mm) | 510 | 660 | ||
Ridging Rows | 1 | 2 | 1 | 2 |
Ridging Width(mm) | 300-800 | 300-1000 | 500-800 | 500-2000 |
Ridging Height | 150-260 | 150-300 | ||
Total Weight(kg) | 140 | 200 | 320 | 380 |
Tractor power(hp) | 20-40 | 50-70 | 50-80 | 90-110 |
Linkage | CATI | CATⅡ | ||
