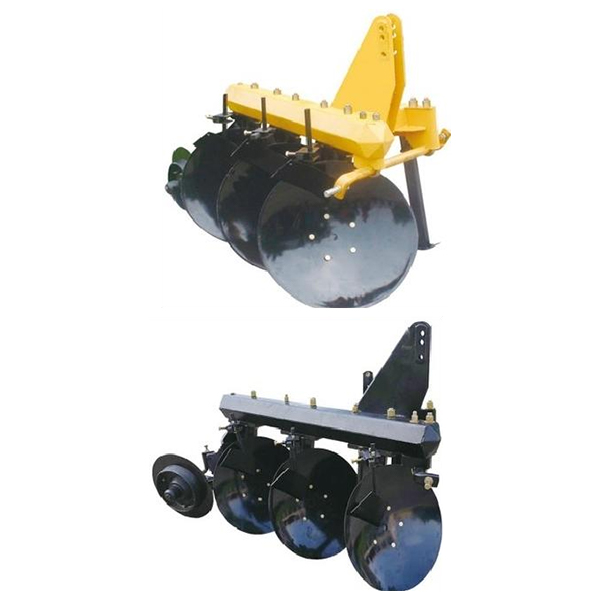

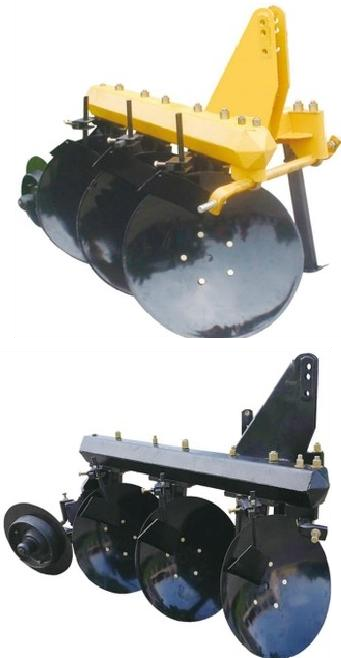

1LY series disc plough is specially designed and manufactured borrowing the features of disc plough abroad.It isfully mounted with 4-wheel tractor.Thediscs of plough are revolvingto furrow the land during operation.The mounted disc plow is especially suitable for cultivation on land which have weeds,stems and frictional soil with small brick etc.
Model | 1LY-2 | 1LY-3 | 1LY-4 | 1LY-5 |
Working Width(mm) | 600 | 900 | 1200 | 1500 |
Working Depth(mm) | 250~300 | |||
Disc Dia(mm) | 660 | |||
Disc Qty | 2 | 3 | 4 | 5 |
Weight(kg) | 350 | 400 | 470 | 560 |
Tractor power (hp) | 40 | 60 | 80 | 120 |
Linkage | Cat Ⅱ Mounted | |||
