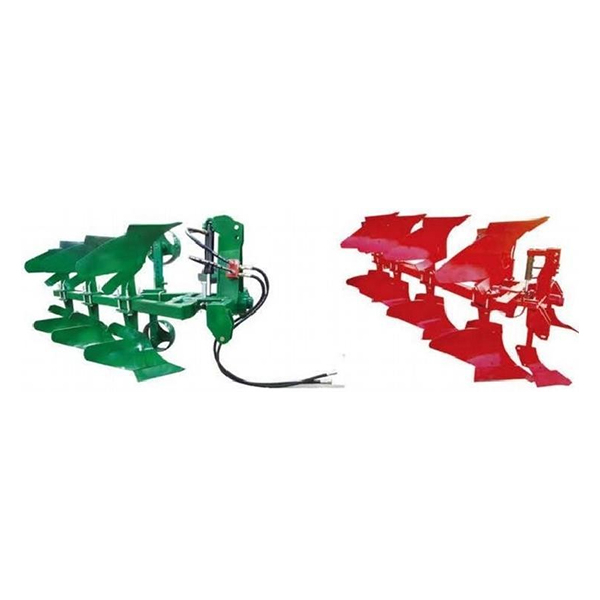

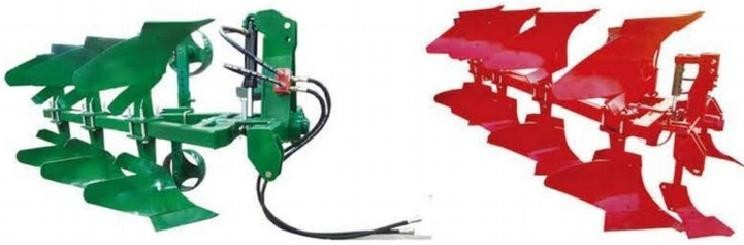

1LFhydraulic reversible plowis mounted with four-wheel tractor;it is used for the loam,sand soil,cultivated and dry land,it can finish the furrowing work in double way.
Model | 1LF-225 | 1LF-325 | 1LF-425 | 1LF-525 | 1LF-330 | 1LF-430 | 1LF-530 | 1LF-335 | 1LF-435 | 1LF-535 |
Working Width(mm) | 500 | 750 | 1000 | 1250 | 900 | 1200 | 1500 | 1050 | 1400 | 1750 |
Working Depth (mm) | 220~270 | 250~300 | 300~50 | |||||||
No.Of bodies | 4 | 6 | 8 | 10 | 6 | 8 | 10 | 6 | 8 | 10 |
Total Weight (kg) | 330 | 400 | 530 | 650 | 680 | 780 | 880 | 700 | 840 | 960 |
Tractor power(hp) | 25-35 | 35-55 | 60-80 | 80-90 | 50-70 60-80 | 90-120 70-80 | 80-100 | 100-120 | ||
Linkage | Mounted CatⅡ | |||||||||
