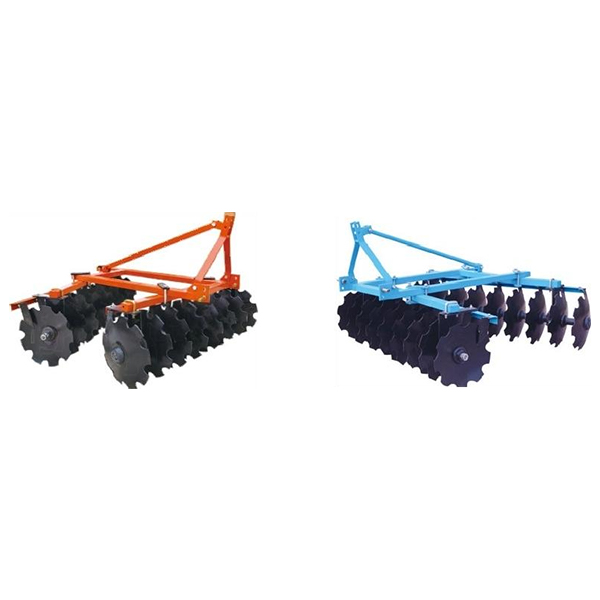

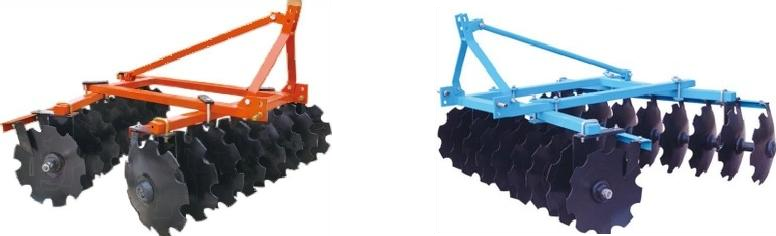

Mounted light duty disc harrow is used in open field working for the superficial ploughing,for the shattering of clods, preparation of soil for sowing,burialof organic substances and remains.It can be used in light and medium soil.
Model | 1BQX-1.1 | 1BQX-1.3 | 1BQX-1.5 | 1BQX-1.7 | 1BQX-1.9 | 1BQX-2.3 |
Working Width(mm) | 1100 | 1300 | 1500 | 1700 | 1900 | 2300 |
Working Depth(mm) | 120 | |||||
Disc Dia. (mm) | 460 | |||||
Disc Qty | 12 | 14 | 16 | 18 | 20 | 24 |
Weight (kg) | 200 | 220 | 240 | 260 | 310 | 360 |
Tractor power(hp) | 15 | 18 | 25 | 40 | 50 | 60 |
Linkage | Mounted Cat l | Mounted Cat II | ||||
