| Quantity: | |
|---|---|

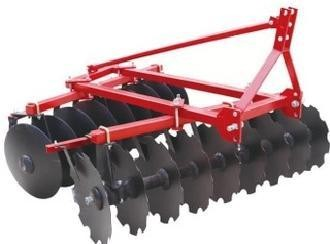

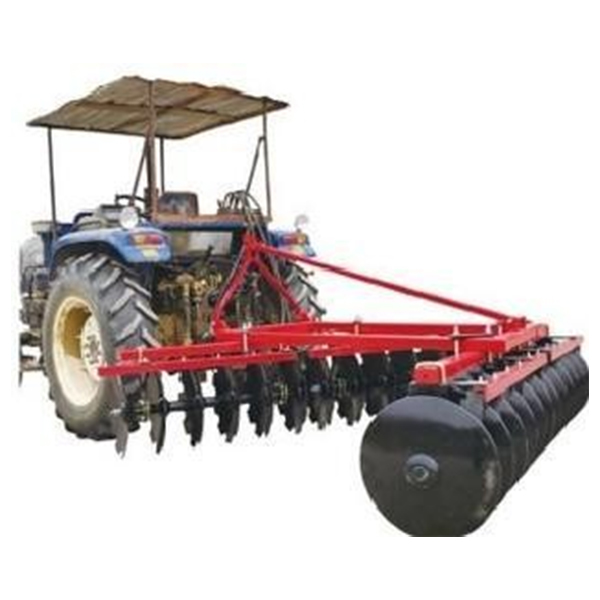

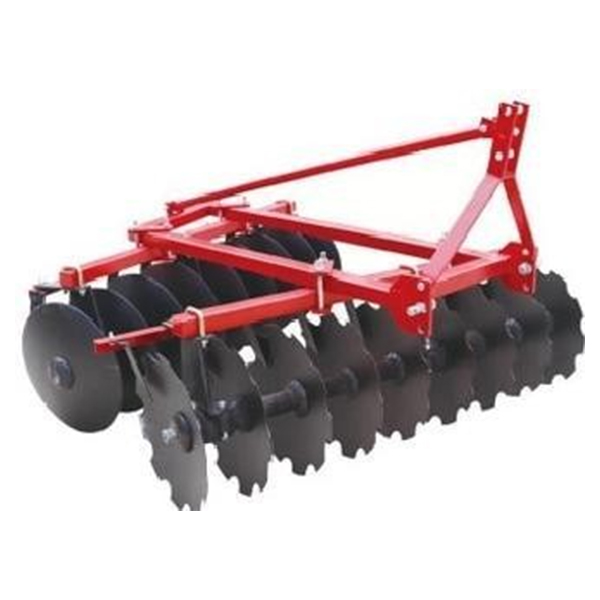

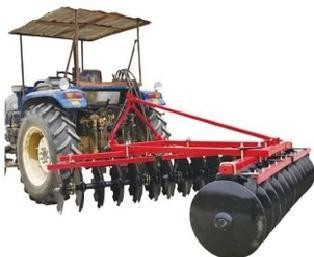

Mounted middle duty disc harrow is used in open field working for the superficial ploughing,for the shattering of clods, preparation of soil for sowing,burial of organic substances and remains.It can be used in light and medium soil
Model | 1BJX-1.6 | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
Working Width(mm) | 1600 | 1800 | 2000 | 2200 | 2400 | 2500 |
Working Depth(mm) | 140 | |||||
Disc Dia. (mm) | 560 | |||||
Disc Qty | 14 | 16 | 18 | 20 | 22 | 24 |
Total Weight (kg) | 350 | 380 | 420 | 470 | 540 | 650 |
Tractor power (hp) | 30 | 40 | 50 | 60 | 70 | 80 |
Linkage | Mounted Cat Il | |||||
Items Optional | Sealed Bearing Assembly | |||||
