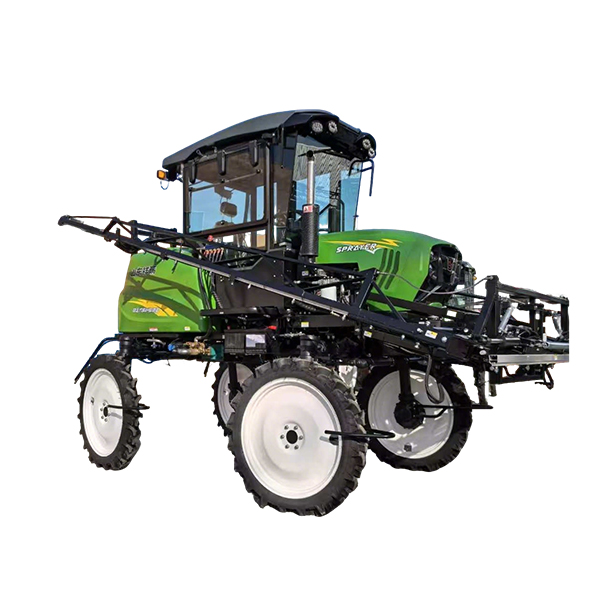

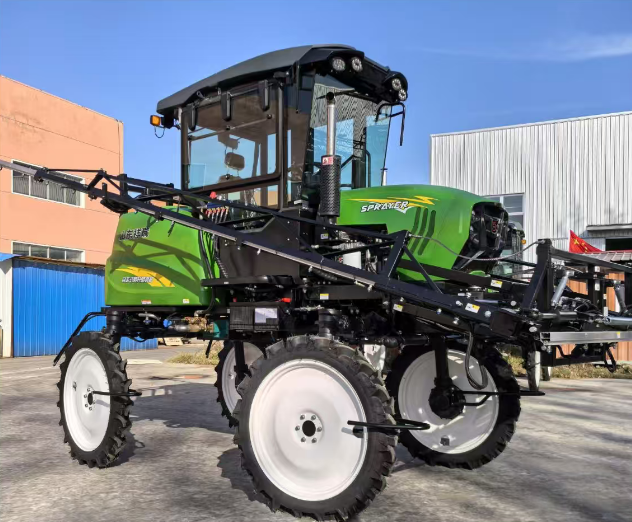

1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-propelled
3. Operating Pressure (MPa): 0.2–0.5
4. Overall Dimensions (mm): 5950 × 2450 × 3150
5. Cab: Fully enclosed, air-conditioned cab
6. Boom Length (mm): ≥ 14,200
7. Minimum Ground Clearance (mm): ≥ 1,030
8. Boom Position: Front-mounted
9. Wheel Track (mm): 1,830
10. Boom Lifting Mechanism: Hydraulic
11. Wheelbase (mm): ≤ 2,380
12. Engine/Motor Type: Diesel Engine
13. Engine/Motor Structure: Inline 4-cylinder, 4-stroke, water-cooled
14. Engine/Motor Rated Power / Speed [kW/(r/min)]: 36.8 / 2400
15. Engine/Motor Operating Voltage: 24 V
16. Liquid (or Air) Pump / Motor Pump Structure: 3-cylinder plunger pump
17. Liquid Pump / Motor Pump Rated Pressure (MPa): 3.5
18. Liquid Pump / Motor Pump Rated Flow Rate (L/min): 52–112
19. Chemical Tank Capacity: ≥ 1,000 L
20. Maximum Allowable Pressure in Pressure Hoses (MPa): 10.5 (before distributor) / 2.76 (after distributor)
21. Optional Fertilizer Spreader: (Ensures uniform spreading and high efficiency); enables simultaneous fertilizer spreading and chemical application.
