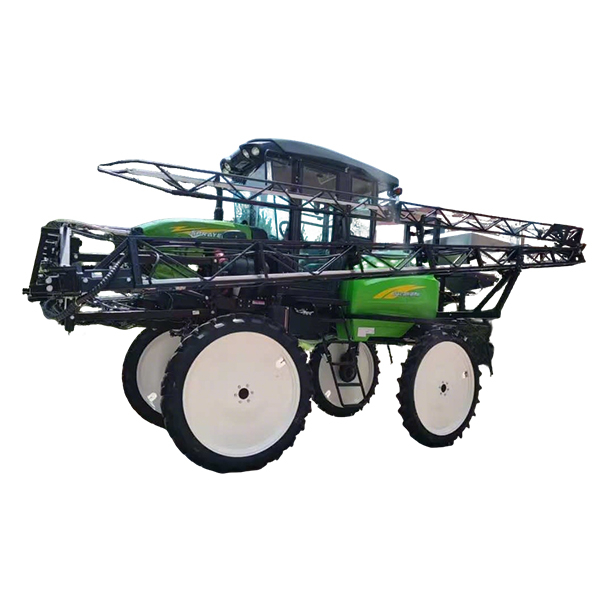

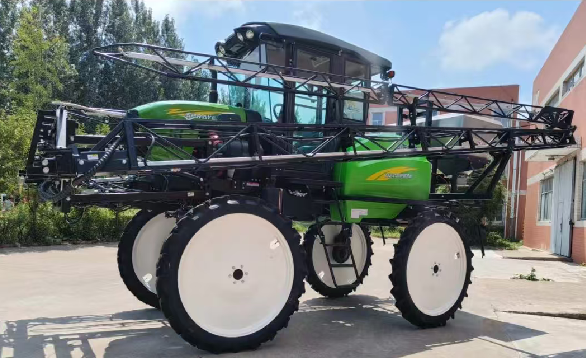

3WPZ-1300AJ(G4) Self-Propelled Boom Sprayer

1. Product Category: Boom Sprayer

2. Machine Structure Type: Self-propelled

3. Operating Pressure (MPa): 0.2–0.5

4. Overall Dimensions (mm): 5950 × 2350 × 3300

5. Cab: Fully Enclosed, Air-Conditioned Cab

6. Boom Length (mm): ≥ 25,000

7. Minimum Ground Clearance (mm): ≥ 1,200

8. Boom Structure: Truss-type structure; Dual Mechanical-Electronic Balancing System (Optional)

9. Wheel Track (mm): 1,800

10. Boom Lifting Mechanism: Hydraulic

11. Wheelbase (mm): ≤ 2,300

12. Engine/Motor Type: Diesel Engine

13. Engine/Motor Structure: Inline 4-Cylinder, 4-Stroke, Water-Cooled

14. Engine/Motor Rated Power / Speed [kW/(r/min)]: 74 / 2400

15. Engine/Motor Operating Voltage (V): 24

16. Liquid (or Air) Pump / Motor-Driven Pump Structure: 3-Cylinder Plunger Pump (2 units)

17. Liquid Pump / Motor-Driven Pump Rated Pressure (MPa): 2.5–4.0

18. Liquid Pump / Motor-Driven Pump Rated Flow (L/min): (36–81) × 2

19. Chemical Tank Capacity (L): ≥ 1,300

20. Maximum Allowable Pressure for Pressure-Bearing Hoses (MPa): 8.8 (Pre-Distributor) / 2.76 (Post-Distributor)

21. Tire Outer Diameter (mm): 1440

22. Tire Width (mm): 130

23. Axle Type: Independently developed dual-reduction axle (Patented)

24. Transmission: Equipped with a Navigation + Precision Application System; this system enables seamless, unified linkage between navigation and precision application to ensure highly accurate spraying operations. (Optional)
