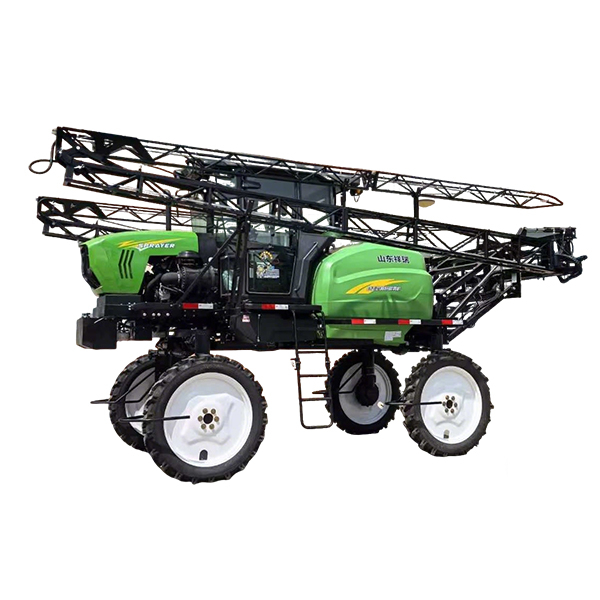

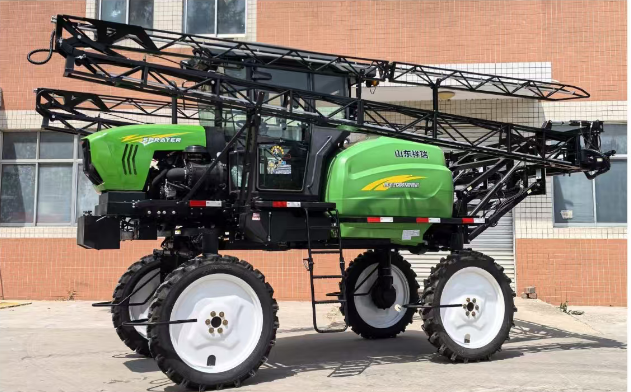

1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-propelled
3. Operating Pressure (MPa): 0.2–0.5
4. Overall Dimensions (mm): 6150 × 3100 × 3630
5. Cab: Fully Enclosed, Air-Conditioned Cab
6. Boom Length (mm): ≥ 25,000 (Optional: Electronically Controlled Hydraulic Balancing System)
7. Minimum Ground Clearance (mm): ≥ 1200
8. Boom Position: Rear-mounted
9. Wheelbase (m): 1.8–2.2 (Manually Adjustable)
10. Boom Lifting Mechanism: Hydraulic
11. Axle Base (mm): ≤ 2860
12. Engine/Motor Type: Diesel Engine
13. Engine/Motor Structure: Inline 4-Cylinder, 4-Stroke, Water-Cooled
14. Engine/Motor Rated Power / Speed (kW / rpm): 74 / 2400
15. Engine/Motor Operating Voltage (V): 24
16. Liquid/Air Pump Structure: Diaphragm Pump
17. Liquid Pump Rated Pressure (MPa): 2.5
18. Liquid Pump Rated Flow Rate (L/min): 160–180
19. Chemical Tank Capacity (L): ≥ 1988
