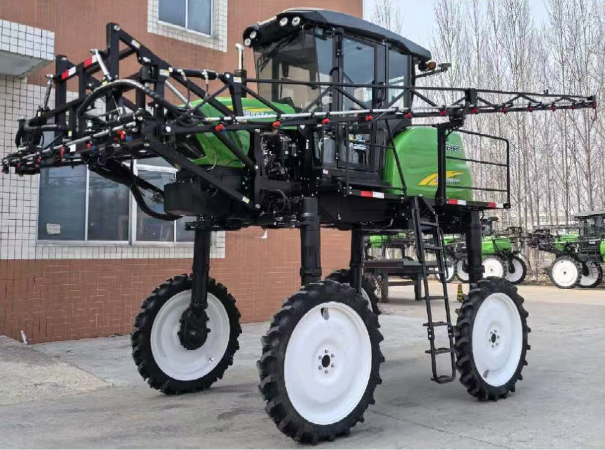

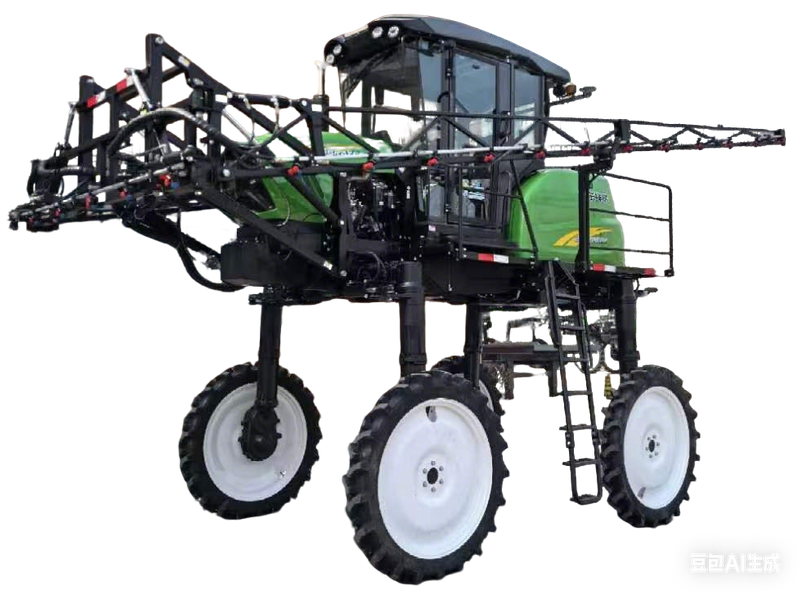

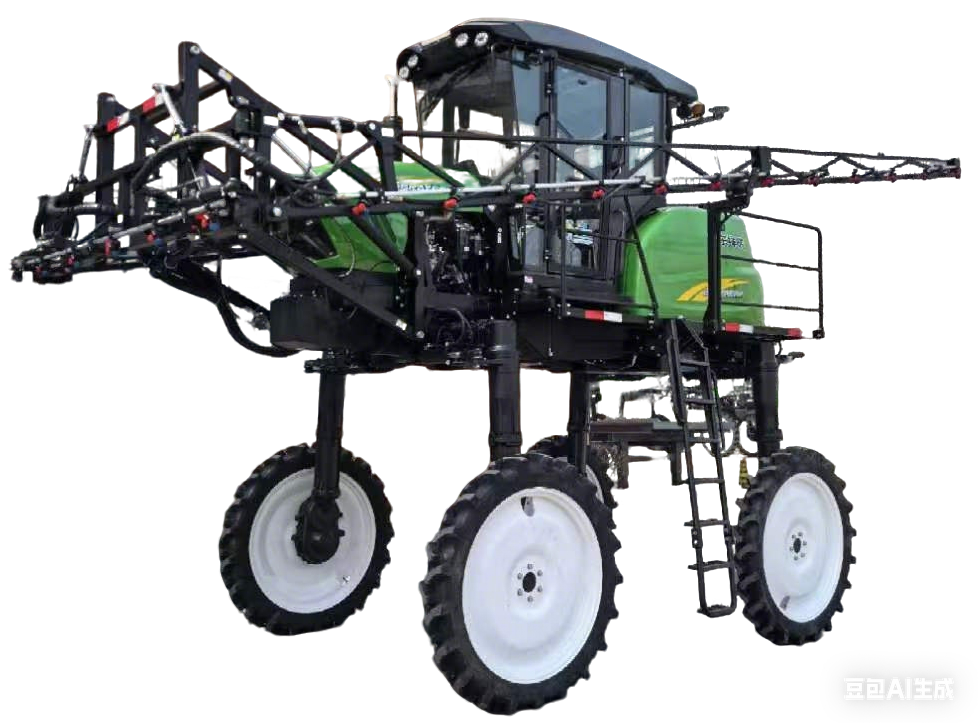

3WPZ-1000T Self-Propelled Boom Sprayer

Product Features:

Equipped with a 50-horsepower engine, it boasts a minimum ground clearance of 1.73 meters. The spray boom lifting height reaches over 2.8 meters, meeting the full-cycle crop protection needs of tall-stalk crops such as corn. The axle features an independently developed dual-reduction design with hydraulic automatic track width adjustment. Furthermore, it incorporates an industry-first dual-plunger pump system, satisfying user requirements for high flow rates and high pressure.

Features an independently patented dual-reduction axle with terminal drive; the axle is detachable, allowing for a reduced ground clearance of 1.35 meters once removed.

Equipped with a rotating triple-nozzle turret, enabling on-the-fly switching to the most suitable nozzle for any specific spraying scenario.

1. Product Category: Boom Sprayer

2. Machine Structure Type: Self-propelled

3. Operating Pressure: 0.4–0.5 MPa

4. Overall Dimensions (L×W×H): 6100 × 2800 × 3890 mm

5. Cab: Fully Enclosed, Air-Conditioned Cab

6. Boom Length: ≥ 14,530 mm

7. Minimum Ground Clearance: ≥ 1,720 mm

8. Boom Position: Front-mounted

9. Wheel Track: 2200–2600 mm (Automatically Hydraulically Adjustable)

10. Boom Lifting Mechanism: Hydraulic

11. Wheelbase: ≤ 2340 mm

12. Engine/Motor Type: Diesel Engine

13. Engine/Motor Structure: Inline 4-Cylinder, 4-Stroke, Water-Cooled

14. Engine/Motor Rated Power / Speed: 36.8 kW / 2400 rpm

15. Liquid (or Air) Pump / Motor-driven Pump Structure: Configuration 1: 3-Cylinder Plunger Type; Optional: Diaphragm Pump

16. Liquid Pump / Motor-driven Pump Rated Pressure (MPa): Configuration 1: 2.5–4.0; Optional: 1.5

17. Liquid Pump / Motor-driven Pump Rated Flow (L/min): Configuration 1: (3478) × 2 (Parallel Connection); Optional: 143, 150

18. Liquid Pump / Motor-driven Pump Plunger (Piston) Diameter: 34 mm

19. Chemical Tank Capacity: ≥ 1300 L

20. Maximum Allowable Pressure in Pressure Hoses: 2.76 MPa (downstream of distributor) / 10.5 MPa (upstream of distributor)

21. Tire Diameter: 1300 mm; Tire Width: 160 mm

22. Axle: Independently Developed Dual-Reduction Axle (Patented)
