| Quantity: | |
|---|---|

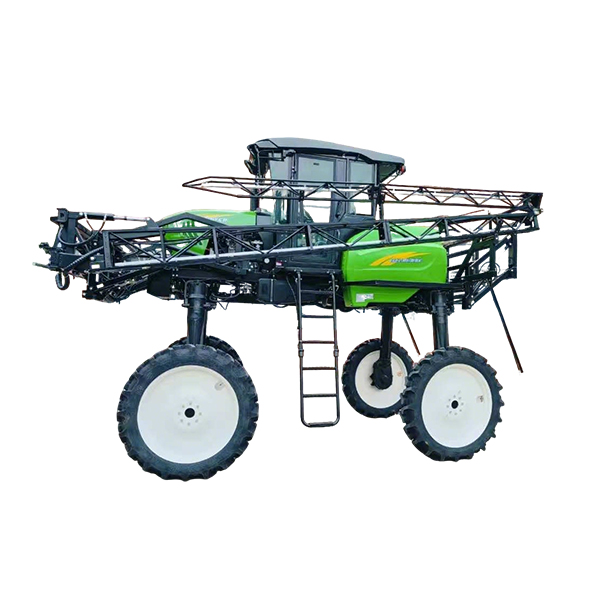

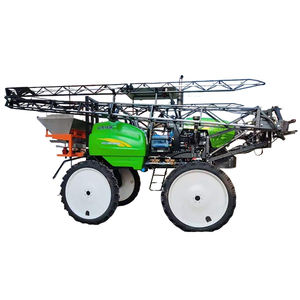

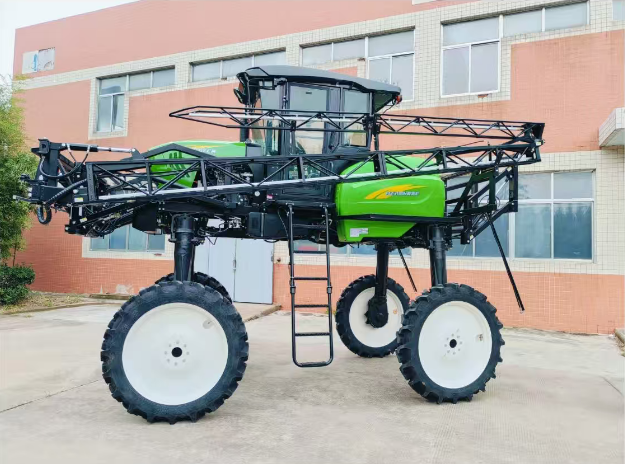

1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-propelled
3. Operating Pressure (MPa): 0.2–0.5
4. Overall Dimensions (mm): 5590 × 3075 × 3960
5. Cab: Fully Enclosed, Air-Conditioned Cab
6. Boom Length (mm): ≥ 20,580
7. Minimum Ground Clearance (mm): ≥ 1,750
8. Boom Position: Rear-mounted
9. Wheel Track (mm): 2250–2575 (Automatic Hydraulic Adjustment)
10. Boom Lifting Mechanism: Hydraulic
11. Wheelbase (mm): ≤ 2,940
12. Engine/Motor Type: Diesel Engine
13. Engine/Motor Structure: Inline 4-Cylinder, 4-Stroke, Water-Cooled
14. Engine/Motor Rated Power / Speed [kW/(r/min)]: 89 / 2400
15. Engine/Motor Operating Voltage (V): 24
16. Liquid (or Air) Pump / Motor-Driven Pump Structure: 3-Cylinder Plunger Pump (2 units in parallel)
17. Liquid Pump / Motor-Driven Pump Rated Pressure (MPa): 3.5
18. Liquid Pump / Motor-Driven Pump Rated Flow (L/min): 36–81
19. Chemical Tank Capacity (L): ≥ 1,300
20. Maximum Allowable Pressure in Pressure Hoses (MPa): 8.7 (Pre-distributor) / 2.76 (Post-distributor)
21. Tire Outer Diameter (mm): 1400
22. Tire Width (mm): 220
23. Axle Type: Independently Developed Dual-Reduction Axle (Patented)
24. Transmission: 12-Speed Synchronized Transmission
