| Quantity: | |
|---|---|

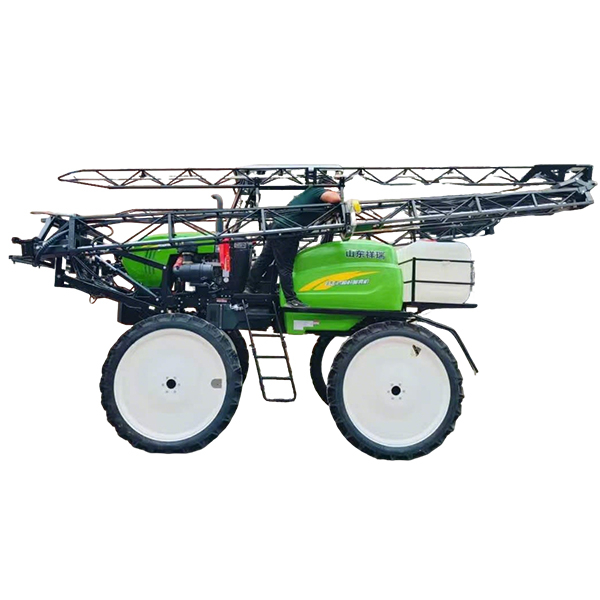

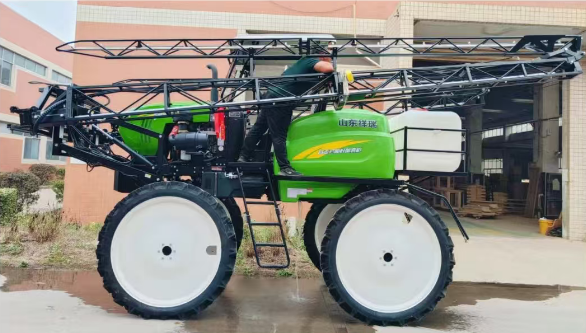

1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-propelled
3. Operating Pressure (MPa): 0.2–0.5
4. Overall Dimensions (mm): 5500 × 2350 × 3150
5. Cab Type: Semi-enclosed
6. Boom Length (mm): ≥ 20,100
7. Minimum Ground Clearance (mm): ≥ 1,200
8. Boom Position: Front-mounted
9. Wheel Track (mm): 18,100 (Automatic hydraulic adjustment)
10. Boom Lifting Mechanism: Hydraulic
11. Wheelbase (mm): ≤ 2,320
12. Engine/Motor Type: Diesel Engine
13. Engine/Motor Structure: Inline 4-cylinder, 4-stroke, Water-cooled
14. Engine/Motor Rated Power / Speed [kW/(r/min)]: 74 / 2400
15. Engine/Motor Operating Voltage (V): 24
16. Fluid/Pump Structure Type: Diaphragm Pump
17. Fluid Pump Rated Pressure (MPa): 2.5
18. Fluid Pump Rated Flow Rate (L/min): 160–180
19. Chemical Tank Capacity (L): ≥ 1300 + 700
20. Max. Allowable Pressure in Pressure Hoses (MPa): 8.7 (Pre-distributor) / 2.76 (Post-distributor)
21. Tire Outer Diameter (mm): 1350
22. Tire Width (mm): 200
23. Axle Type: Independently developed dual-reduction axle (Patented)
