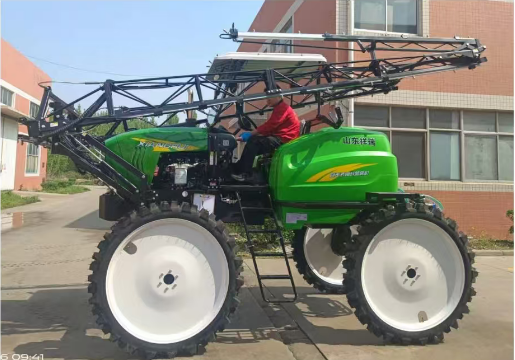

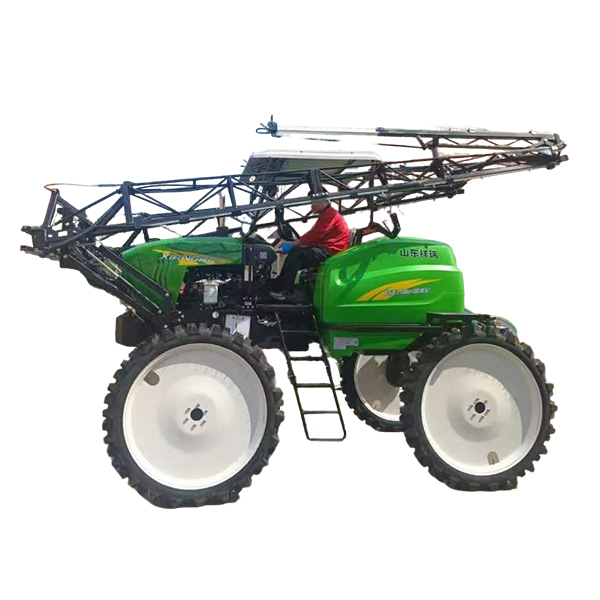

1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-propelled
3. Operating Pressure (MPa): 0.2–0.5
4. Overall Dimensions (mm): 4900 × 2030 × 3080
5. Boom Length (mm): ≥ 17,160
6. Minimum Ground Clearance (mm): ≥ 1,080
7. Boom Position: Front-mounted
8. Wheel Track (mm): 1,780
9. Boom Lifting Mechanism: Hydraulic
10. Wheelbase (mm): ≤ 2,475
11. Engine/Motor Type: Diesel Engine
12. Engine/Motor Structure: Inline 4-cylinder, 4-stroke, Water-cooled
13. Engine/Motor Rated Power / Speed [kW/(r/min)]: 36.8 / 2400
14. Engine/Motor Operating Voltage (V): 24
15. Fluid (or Air) Pump / Motor-driven Pump Structure: 3-cylinder Plunger Pump (2 pumps in parallel)
16. Fluid Pump / Motor-driven Pump Rated Pressure (MPa): 2.5–4.0
17. Fluid Pump / Motor-driven Pump Rated Flow (L/min): 36–81
18. Chemical Tank Capacity (L): ≥ 1,296.5
19. Maximum Allowable Pressure in Pressure Hoses (MPa): 8.7 (before distributor) / 2.76 (after distributor)
20. Axle Type: Independently developed dual-reduction axle (Patented)
