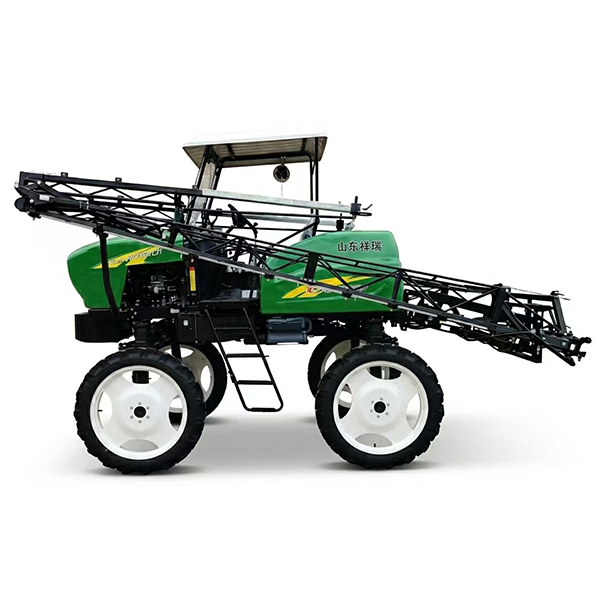

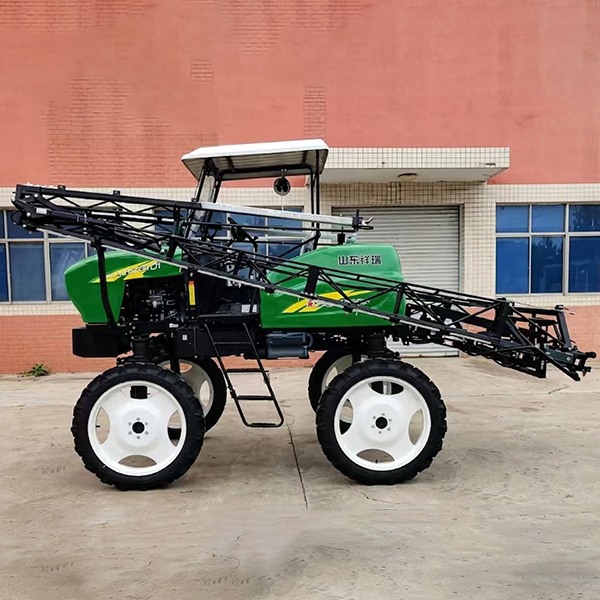

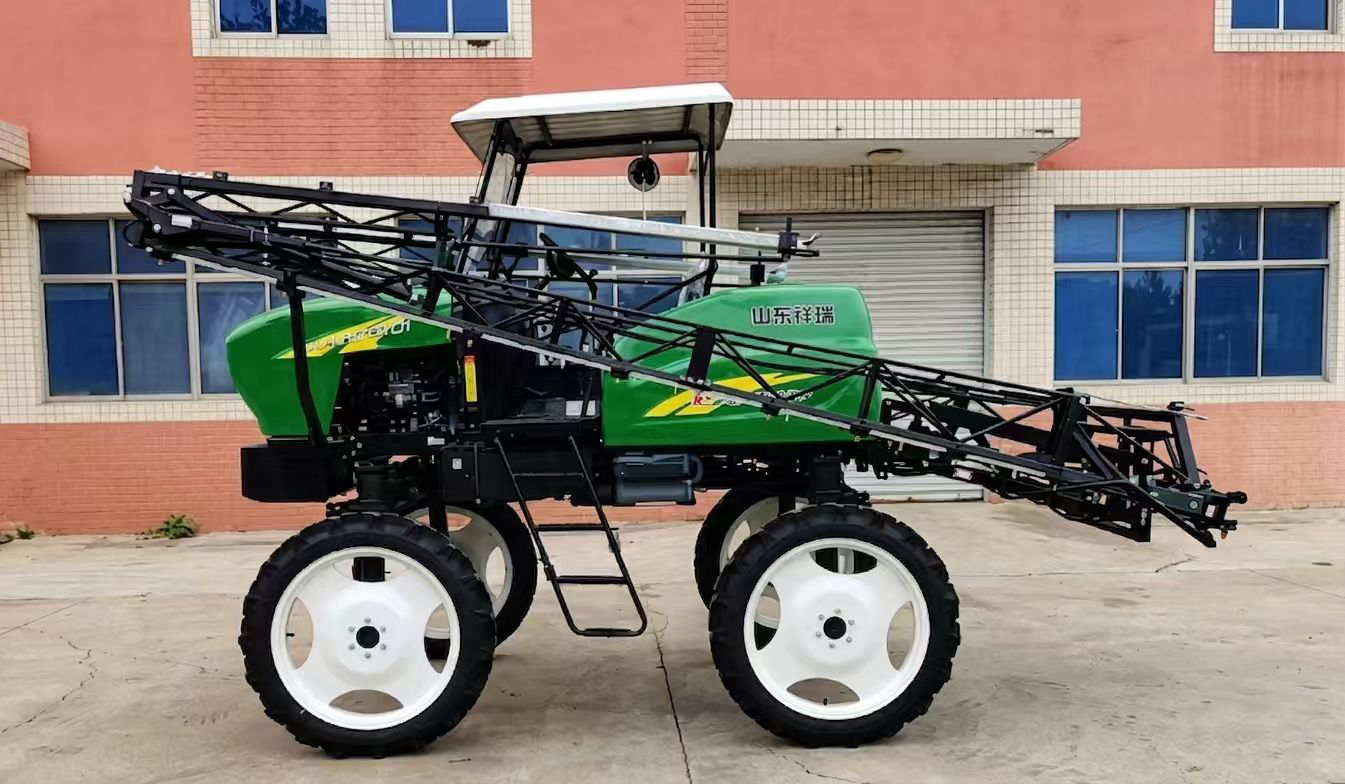

1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-Propelled
3. Operating Pressure (MPa): 0.4–0.5
4. Overall Dimensions (mm): 4850 × 2080 × 2950
5. Boom Length (mm): ≥ 18,100
6. Minimum Ground Clearance (mm): ≥ 1050
7. Boom Position: Rear-Mounted
8. Wheel Track (mm): 1800
9. Boom Lifting Mechanism: Hydraulic
10. Wheelbase (mm): ≤ 2050
11. Engine/Motor Type: Diesel Engine
12. Engine/Motor Structure: Inline 4-Cylinder, 4-Stroke, Water-Cooled
13. Engine/Motor Rated Power / Speed [kW/(r/min)]: 36.8 / 2400
14. Liquid Pump Structure: 3-Cylinder Plunger Pump
15. Liquid Pump Rated Pressure (MPa): 2.5–4.0
16. Liquid Pump Rated Flow Rate (L/min): 36–81
17. Liquid Pump Plunger (Piston) Diameter: 34 mm
18. Chemical Tank Capacity (L): ≥ 700
19. Max. Allowable Pressure for Pressure-Bearing Hoses (MPa): 6 (downstream of distributor) / 15 (upstream of distributor)
