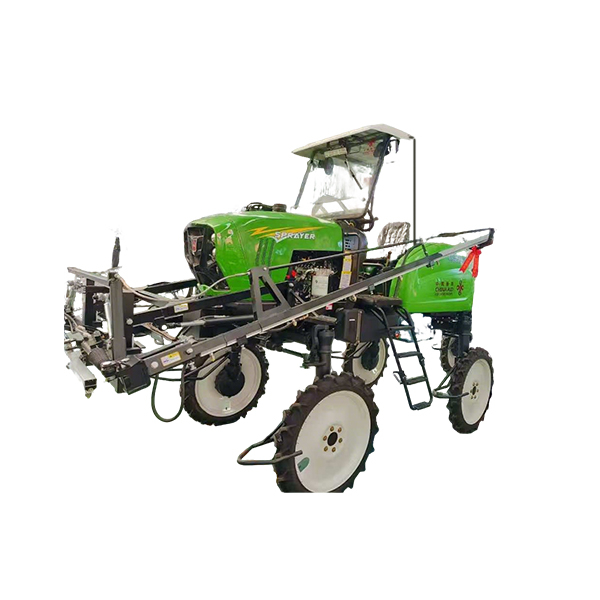

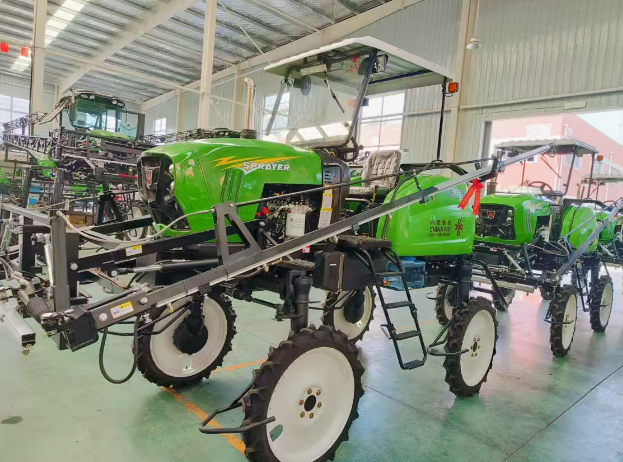

1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-propelled
3. Operating Pressure (MPa): 0.4–0.5
4. Overall Dimensions (mm): 4700 × 2050 × 2900
5. Boom Length (mm): ≥ 11200
6. Minimum Ground Clearance (mm): ≥ 1020
7. Boom Position: Front-mounted
8. Wheel Track (mm): 1500
9. Boom Lifting Mechanism: Hydraulic
10. Wheelbase (mm): ≤ 2050
11. Engine/Motor Type: Diesel Engine
12. Engine/Motor Structure: Inline 4-cylinder, 4-stroke, Water-cooled
13. Engine/Motor Rated Power / Speed [kW/(r/min)]: 36.8 / 2400
14. Liquid (or Air) Pump / Motor-driven Pump Structure: 3-Cylinder Plunger Pump
15. Liquid Pump / Motor-driven Pump Rated Pressure (MPa): 2.5–4.0
16. Liquid Pump / Motor-driven Pump Rated Flow Rate (L/min): 36–81
17. Liquid Pump / Motor-driven Pump Plunger (Piston) Diameter (mm): 34
18. Chemical Tank Capacity (L): ≥ 700
19. Maximum Allowable Pressure for Pressure-bearing Hoses (MPa): 6 (downstream of distributor) / 15 (upstream of distributor)
20. Tire Diameter (mm): 940 | Tire Width (mm): 120
