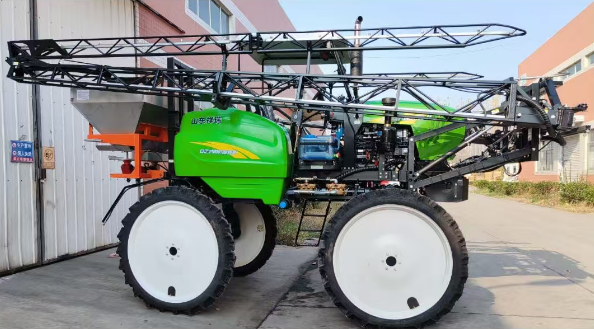

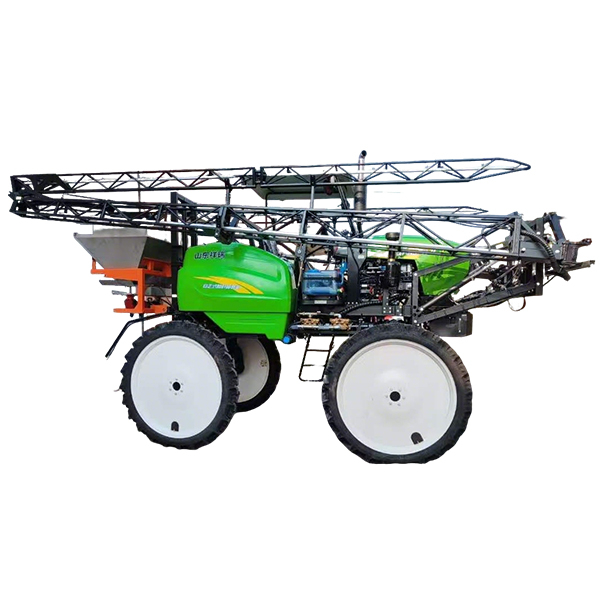

3WPZ-1300A(G4) Self-Propelled Boom Sprayer

1. Product Category: Boom Sprayer

2. Machine Structure Type: Self-propelled

3. Operating Pressure (MPa): 0.2–0.5

4. Overall Dimensions (mm): 6050 × 2230 × 3170

5. Cab: Semi-enclosed

6. Boom Length (mm): ≥ 24,750

7. Minimum Ground Clearance (mm): ≥ 1,200

8. Boom Configuration: Truss structure; Dual mechanical-electronic balancing system (Optional)

9. Wheel Track (mm): 1,800

10. Boom Lifting Mechanism: Hydraulic

11. Wheelbase (mm): ≤ 2,300

12. Engine/Motor Type: Diesel Engine

13. Engine/Motor Structure: Inline 4-cylinder, 4-stroke, water-cooled

14. Engine/Motor Rated Power / Speed [kW/(r/min)]: 74 / 2,400

15. Engine/Motor Operating Voltage (V): 24

16. Fluid/Pump Structure: 3-cylinder plunger pump (2 units)

17. Fluid Pump Rated Pressure (MPa): 2.5–4.0

18. Fluid Pump Rated Flow Rate (L/min): (36–81) × 2

19. Chemical Tank Capacity: ≥ 1,300 L

20. Max. Allowable Pressure in Pressure Hoses (MPa): 8.8 (Pre-distributor) / 2.76 (Post-distributor)

21. Tire Outer Diameter (mm): 1400

22. Tire Width (mm): 130

23. Axle Type: Independently developed dual-reduction axle (Patented)

24. Equipped with a Navigation + Precision Application System; this system enables seamless, unified linkage between navigation and precision application functions to ensure highly accurate spraying operations. (Optional)
