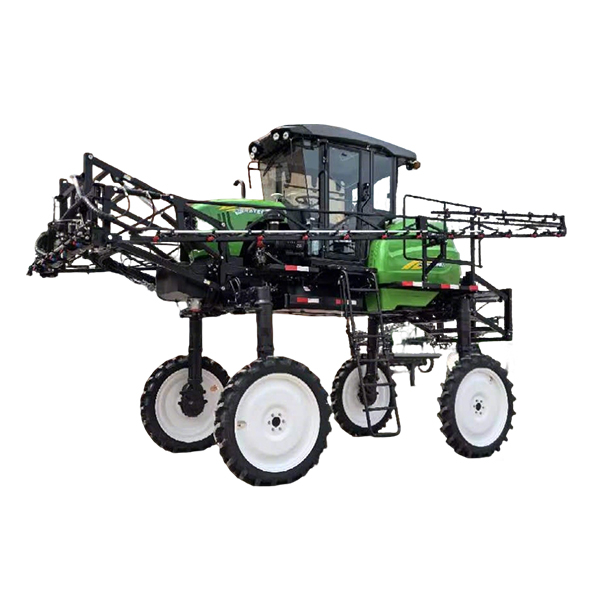

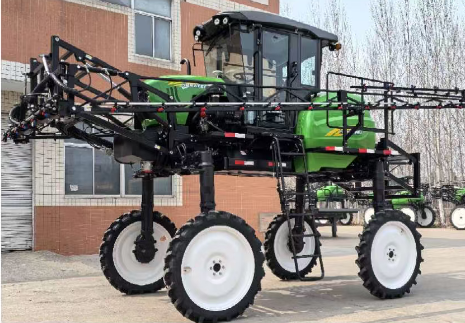

Equipped with a 100-horsepower engine, the machine features a minimum ground clearance of 1.73 meters. The spray boom lifting height reaches over 2.8 meters, meeting the full-cycle crop protection needs of tall-stalk crops such as corn. The axle system utilizes an independently developed dual-reduction design with hydraulic automatic track-width adjustment; furthermore, it features an industry-first dual-plunger pump configuration, satisfying user requirements for high flow rates and high pressure.
Equipped with a rotatable triple-nozzle turret, allowing users to instantly switch to the most suitable nozzle for any given spraying scenario.
1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-propelled
3. Operating Pressure (MPa): 0.4–0.5
4. Overall Dimensions (mm): 6200 × 2900 × 3890
5. Cab: Fully Enclosed, Air-Conditioned Cab
6. Boom Length (mm): ≥ 20,100
7. Minimum Ground Clearance (mm): ≥ 1,730
8. Boom Position: Front-mounted
9. Wheel Track (mm): 2200–2600 (Automatically Hydraulically Adjustable)
10. Boom Lifting Mechanism: Hydraulic
11. Wheelbase (mm): ≤ 2900
12. Engine/Motor Type: Diesel Engine
13. Engine/Motor Structure: Inline 4-Cylinder, 4-Stroke, Water-Cooled
14. Engine/Motor Rated Power / Speed [kW/(r/min)]: 74 / 2400
15. Liquid/Air Pump (or Motor-driven Pump) Structure: Configuration 1: 3-Cylinder Plunger Type; Optional: Diaphragm Pump
16. Liquid Pump Rated Pressure (MPa): Configuration 1: 2.5–4.0; Optional: 1.5
17. Liquid Pump Rated Flow Rate (L/min): Configuration 1: (3478) × 2 (Parallel Connection); Optional: 143 / 150
18. Liquid Pump Plunger (Piston) Diameter: 34 mm
19. Chemical Tank Capacity: ≥ 1300 L
20. Maximum Allowable Pressure for Pressure Hoses (MPa): 2.76 (Downstream of Distributor) / 10.5 (Upstream of Distributor)
21. Tire Diameter: 1300 mm; Tire Width: 160 mm
22. Axle: Independently Developed Dual-Reduction Axle (Patented)
