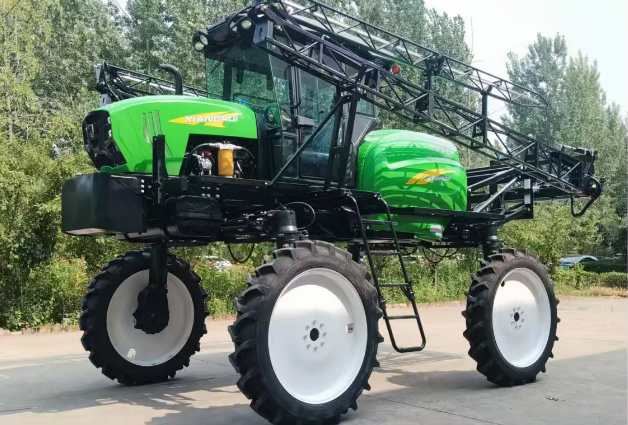

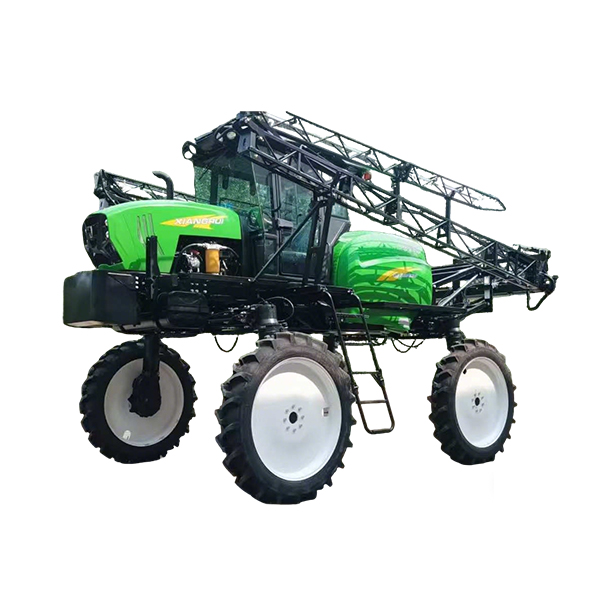

3WPZ-2000D(G4) Self-Propelled Boom Sprayer (Semi-High Clearance)

1. Product Category: Boom Sprayer

2. Machine Structure Type: Self-propelled

3. Operating Pressure (MPa): 0.2–0.5

4. Overall Dimensions (mm): 6150 × 3100 × 3630

5. Cab: Fully Enclosed, Air-Conditioned Cab

6. Boom Length (mm): ≥ 20,720

7. Minimum Ground Clearance (mm): ≥ 1,420

8. Boom Position: Rear-mounted

9. Wheel Track (mm): 2610–3240 (Automatic Hydraulic Adjustment)

10. Boom Lifting Mechanism: Hydraulic

11. Wheelbase (mm): ≤ 2,860

12. Engine/Motor Type: Diesel Engine

13. Engine/Motor Structure: Inline 4-Cylinder, 4-Stroke, Water-Cooled

14. Engine/Motor Rated Power / Speed [kW/(r/min)]: 88.3 / 2400

15. Engine/Motor Operating Voltage (V): 24

16. Fluid/Pump Structure: 3-Cylinder Plunger Pump (2 units in series)

17. Fluid Pump Rated Pressure (MPa): 3.5

18. Fluid Pump Rated Flow Rate (L/min): 52–117

19. Chemical Tank Capacity (L): ≥ 1,988.2

20. Max. Allowable Pressure in Pressure Hoses (MPa): 8.7 (Pre-distributor) / 2.76 (Post-distributor)

21. Tire Outer Diameter (mm): 1440

22. Tire Width (mm): 220

23. Axle Type: Independently Developed Dual-Reduction Axle (Patented)

24. Transmission: 12-Speed Synchronized Transmission
