| Quantity: | |
|---|---|

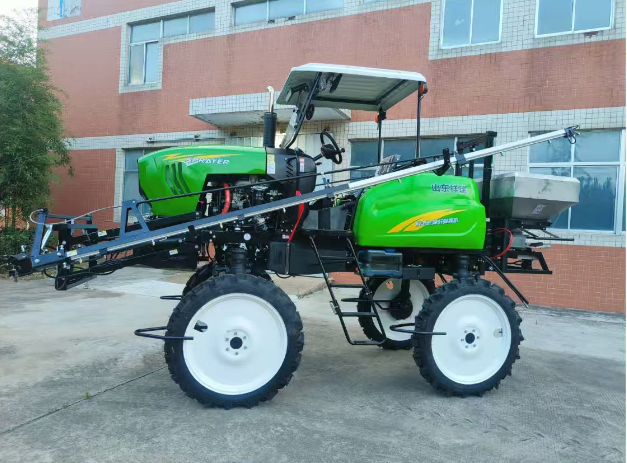

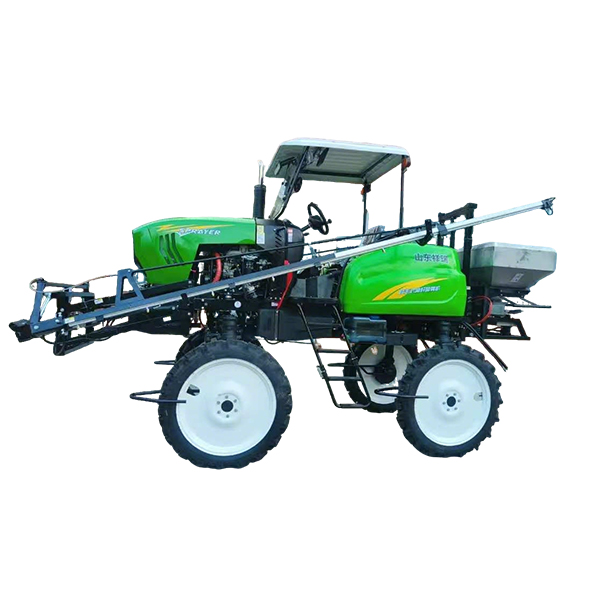

1. Product Category: Boom Sprayer
2. Machine Structure Type: Self-propelled
3. Operating Pressure (MPa): 0.2–0.5
4. Overall Dimensions (mm): 5950 × 2100 × 3000
5. Boom Length (mm): ≥ 13,850
6. Minimum Ground Clearance (mm): ≥ 1,030
7. Boom Position: Front-mounted
8. Wheel Track (mm): 1,510
9. Boom Lifting Mechanism: Hydraulic
10. Wheelbase (mm): ≤ 2,050
11. Engine/Motor Type: Diesel Engine
12. Engine/Motor Structure: Inline 4-cylinder, 4-stroke, Water-cooled
13. Engine/Motor Rated Power / Speed [kW/(r/min)]: 36.8 / 2,400
14. Engine/Motor Operating Voltage (V): 24
15. Fluid/Pump Structure: 3-Cylinder Plunger Pump
16. Fluid Pump Rated Pressure (MPa): 3.5
17. Fluid Pump Rated Flow Rate (L/min): 52–112
18. Chemical Tank Capacity (L): ≥ 700
19. Maximum Allowable Pressure in Pressure Hoses (MPa): 8.7 (Pre-distributor) / 2.76 (Post-distributor)
20. Compatible with a 350-liter dual-disc fertilizer spreader (ensuring uniform spreading and high efficiency), enabling simultaneous fertilizer spreading and chemical spraying operations.
